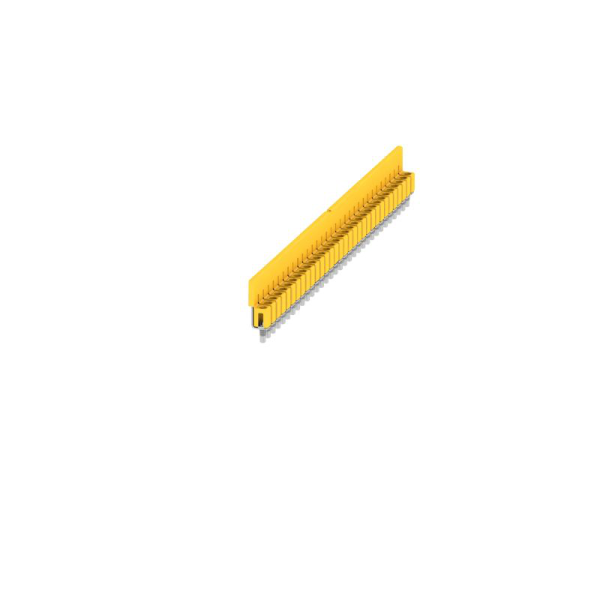

WQV 2.5/32
SKU: 1577600000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
WQV 2.5/32:
Cross-connections that are screwable are simple to install and remove.
Maximum contact reliability may be achieved even at high currents due to the large contact surface.
Material data:
Material: PA 66
Colour: yellow
UL 94 flammability rating: V-0
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 18 mm
Height: 162.1 mm
Width: 7 mm
Net weight: 24.9 g
Temperatures:
Storage temperature: -25 °C...55 °C
Continuous operating temp., min.: -60 °C
Continuous operating temp., max.: 130 °C
Rating data:
Rated current: 32 A
