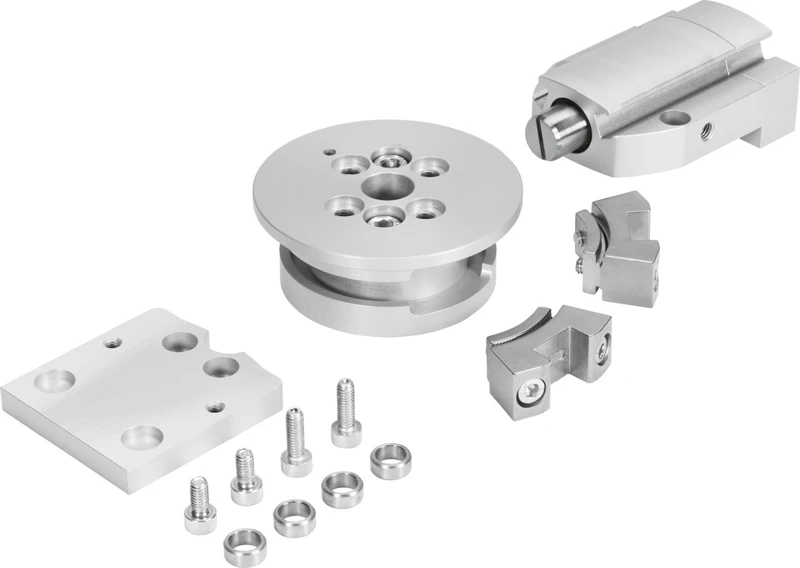

Semi-rotary drives DRRD, Accessories, Clamping unit, DADL-EL-Q11-20
SKU: 1579786
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Semi-rotary drives DRRD, twin pistons
• Accessories, Clamping unit
• Size 20
• Rotation angle adjustment range 60 deg ... 200 deg
• Design Piston, Piston rod
• Position detection Via proximity switch
• Operating pressure 0.5 MPa ... 0.8 MPa
• Operating pressure 5 bar ... 8 bar
• Operating pressure 72.5 psi ... 116 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Buy currently uses Select Automation shop pricing and checkout.
Semi-rotary drives DRRD, twin pistons
• Rack and pinion principle
• Very high accuracy in the end positions
• Very high load bearing capacity
• Very good axial run-out at the flange shaft
• High mass moments of inertia
• Low backlash and good dynamic response
• Splash-proof design to IP65 based on EN 60529
• Defined interfaces
• Supply port at one end
• Choice of mounting options
• Ideal for use in handling applications
