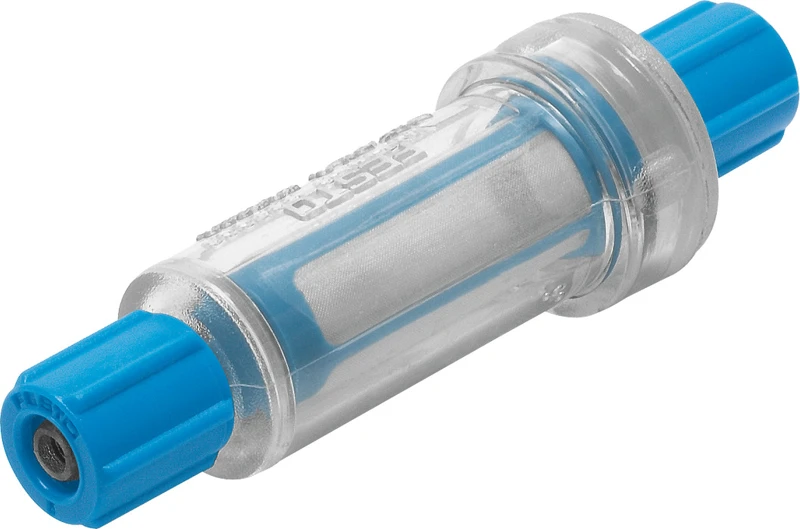

Vacuum filter, VAF-PK-4

Specifications • Vacuum filter VAF-PK with transparent housing for identifying the degree of contamination. • Nominal size 3 mm • Mounting position optional • Grade of filtration 50 µm • Symbol 00991483 • Operating pressure -0.95 bar ... 0 bar • Note on operating pressure Only for use in open vacuum systems • Flow rate with vacuum = -0.075 MPa (-0.75 bar, -10.875 psi) 70 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature 0 °C ... 40 °C • Product weight 6 g • Type of mounting In-line installation • Pneumatic connection PK-4 with union nut
