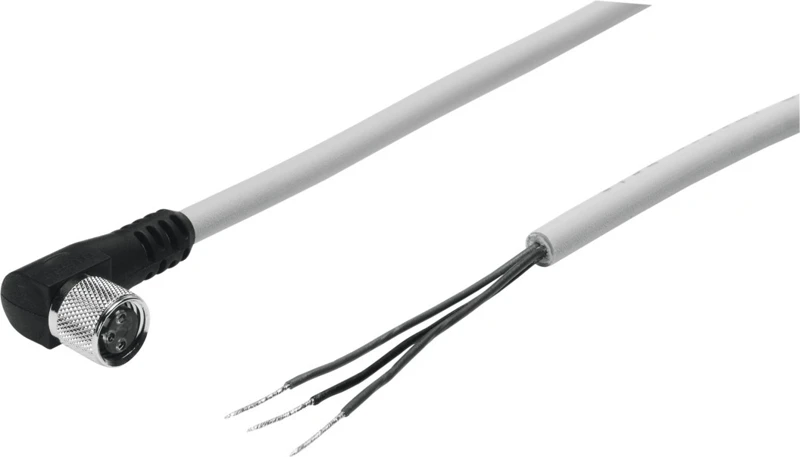

Connecting cable, SIM-M8-3WD-2.5-PSL-PU
SKU: 159424
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Connecting cables, M8, 3-pin
• Conforms to standard EN 61076-2-104 EN 61984
• Ready status indication Green LED
• Switching status indication Yellow LED
• Electrical connection 3-pin/3-wire, Angled socket/open end, M8x1/-
• Symbol 00995371
• Operational voltage range DC 10 V ... 30 V
• Current rating at 40° C 4 A
• Immunity to surge 0.8 kV
• Cable length 2.5 m
• Cable characteristic Standard
Buy currently uses Select Automation shop pricing and checkout.
Plug socket with cable, connecting cable SIM
• For thread M8 grid locking A-coded according to EN 61076-2-104
• For thread M12x1 A-coded according to EN 61076-2-101
• Pre-assembled at one end
• Cable length 2 ... 25 m
• With PVC or PUR cable
• Ambient temperature -25 ... +80 °C
