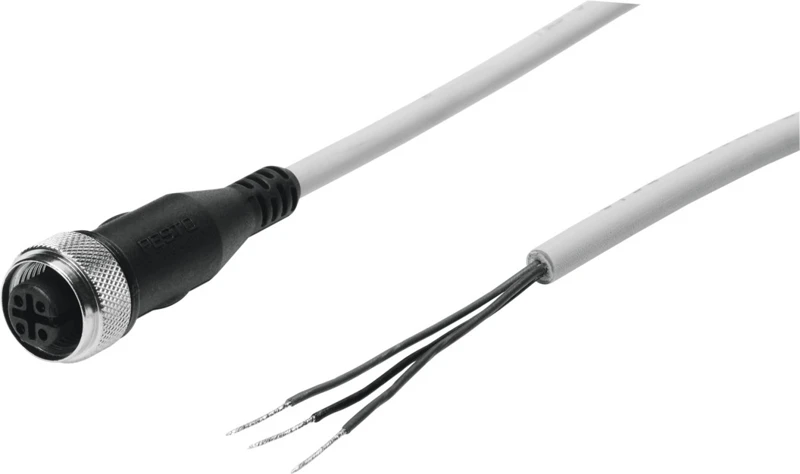

Connecting cable, SIM-M12-3GD-5-PU
SKU: 159429
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Connecting cables, M12, 5-pin
• Conforms to standard EN 61076-2-101, EN 61984
• Electrical connection 5-pin/3-wire, Straight socket/open end, M12x1/-
• Plug encoding A
• Symbol 00991867
• Operational voltage range DC 0 V ... 250 V
• Operational voltage range AC 0 V ... 250 V
• Current rating at 40° C 4 A
• Immunity to surge 2.5 kV
• Cable length 5 m
• Cable characteristic Standard
Buy currently uses Select Automation shop pricing and checkout.
Plug socket with cable, connecting cable SIM
• For thread M8 grid locking A-coded according to EN 61076-2-104
• For thread M12x1 A-coded according to EN 61076-2-101
• Pre-assembled at one end
• Cable length 2 ... 25 m
• With PVC or PUR cable
• Ambient temperature -25 ... +80 °C
