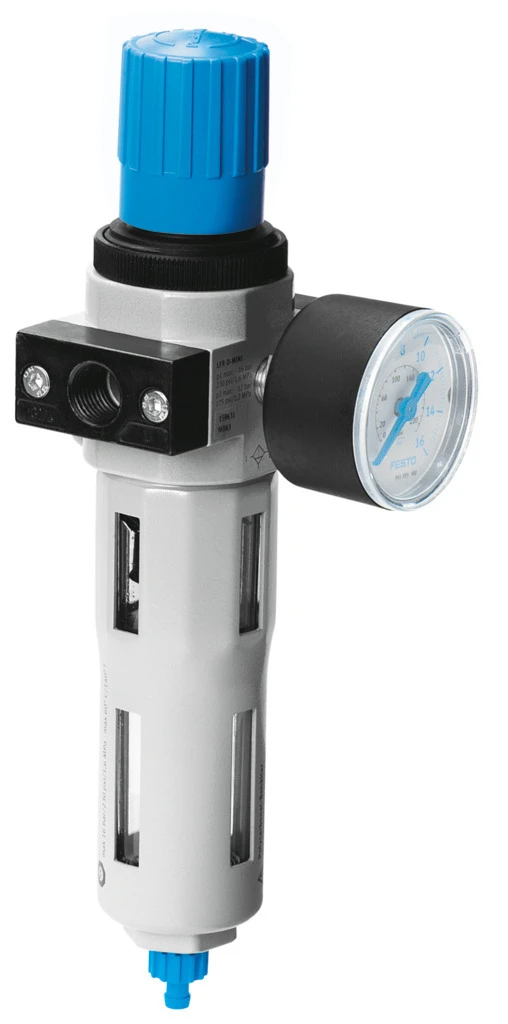

Filter regulator, LFR-1/4-D-MINI

Specifications • Filter regulator LFR, LFRS • Size Mini • Series D • Actuator lock Rotary knob with detent • Mounting position Vertical +/-5° • Grade of filtration 40 µm • Condensate drain Manually rotating • Design Filter regulator with pressure gauge • Max. condensate volume 22 ml • Bowl guard Metal bowl guard • Symbol 00991585 • Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge • Operating pressure 1 bar ... 16 bar • Pressure regulation range 0.5 bar ... 12 bar • Pneumatic connection, port 1 G1/4 • Standard nominal flow rate (standardised to DIN 1343) 1400 l/min
