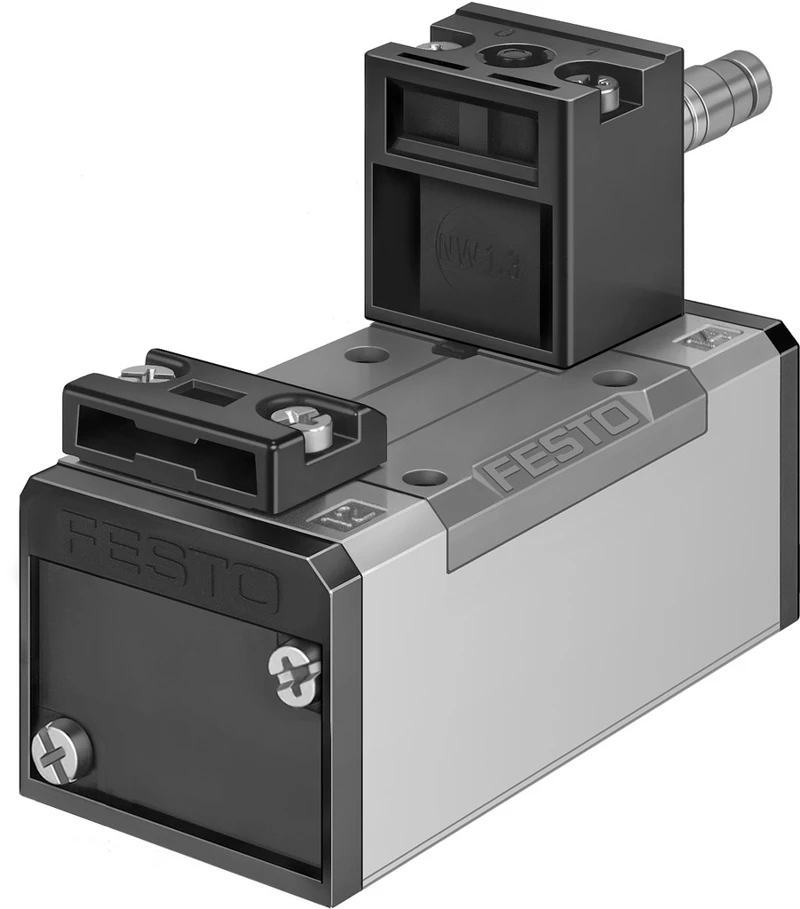

Solenoid valve, MN1H-5/2-D-3-FR-C

Specifications • Standards-based valves to ISO 5599-1, solenoid coil MSN1 • Valve function 5/2-way, monostable • Type of actuation Electric • Construction width 65 mm • Standard nominal flow rate (standardised to DIN 1343) 4500 l/min • Pneumatic working port Sub-base size 3 to ISO 5599-1, G1/2 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0.3 MPa ... 1 MPa • Operating pressure 3 bar ... 10 bar • Design Piston gate valve • Type of reset Mechanical spring
