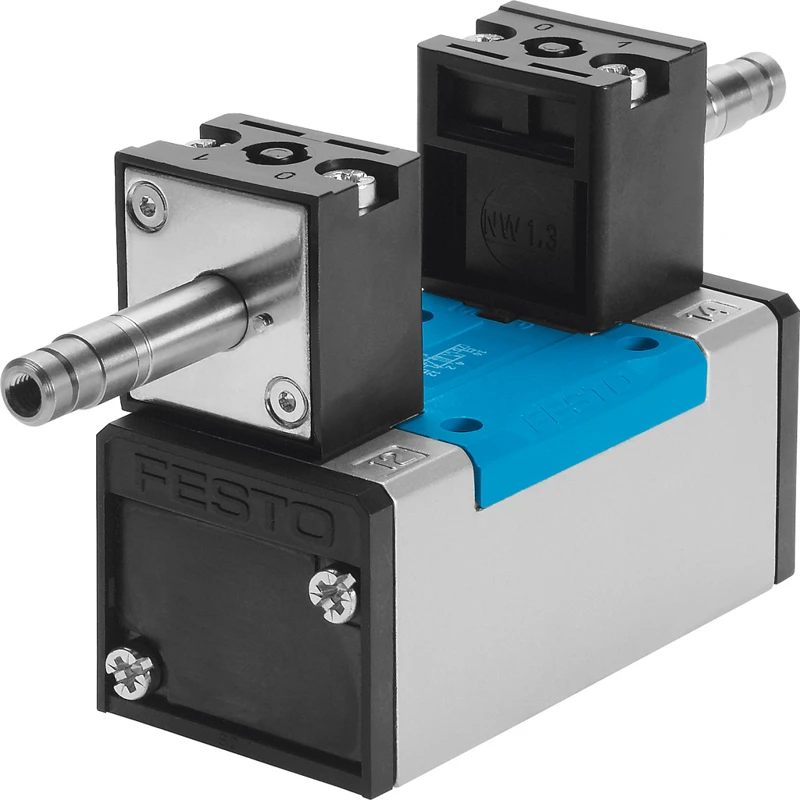

Solenoid valve, JMN1H-5/2-D-3-C

Specifications • Standards-based valves to ISO 5599-1, solenoid coil MSN1 • Feature Value • Valve function 5/2 double solenoid • Type of actuation Electric • Construction width 65 mm • Standard nominal flow rate (standardised to DIN 1343) 4500 l/min • Pneumatic working port Sub-base size 3 to ISO 5599-1, G1/2 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0.2 MPa ... 1 MPa • Operating pressure 2 bar ... 10 bar • Design Piston gate valve • Approval c UL us - Recognized (OL)
