Small Footprint Speed Controller, 1600i
SKU: 1600i
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

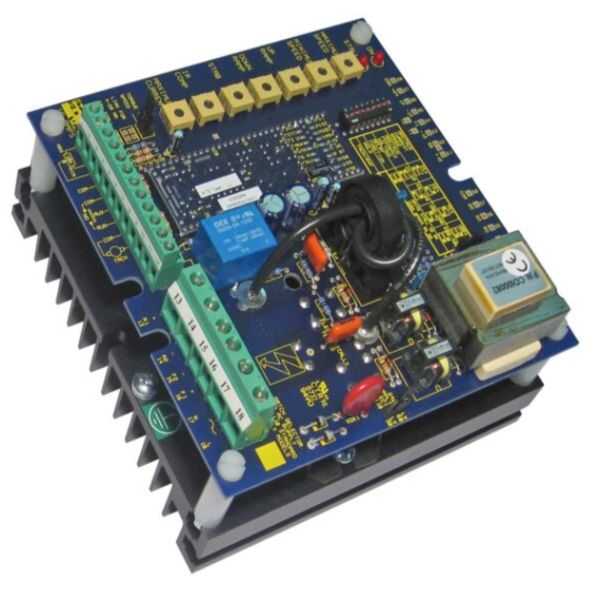

Small brushed or permanent magnet DC motors can be controlled with the Sprint 1600i Small Footprint Speed Controller.
The ultra-compact DIN rail mounting of this drive is well-known for saving panel space and facilitating simple installation.
DC motors with an output power of up to 2.2kW can use the 1600i model since it has an output current of up to 16A.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: Up to 2.2kW (3HP).
Output Current: 16A.
Mounting: DIN rail.
Cooling: Fully isolated control electronics.
Adjustable IR Compensation: For improved AVF speed regulation.
Selectable Dual Voltage AC Supply: 100-130V or 200-264V.
User Adjustable: Max motor speed, min motor speed, up ramp, down ramp, stability, Imax, IR comp, AVF/Tach switch, speed range switch, AC voltage selector, signal level comparator.
Protection: 150% overload with stall protection.
Additional Features: Push-button reversing function, easy to access drive adjustments, plug-on screw terminals.
