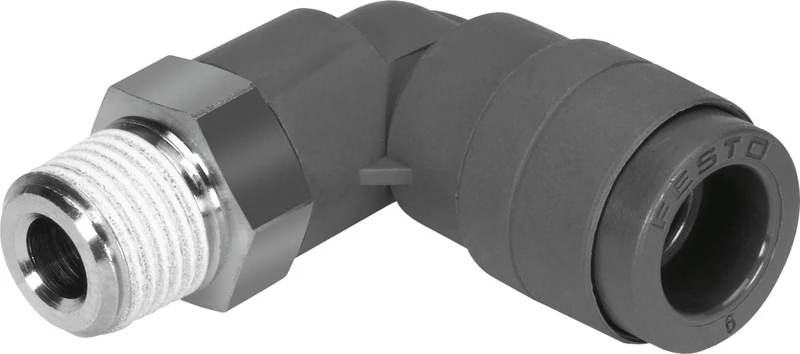

Push-in L-fitting, QSL-V0-1/8-6

Specifications • Push-in fittings QS-V0, resistant to welding spatter • Push-in L-fitting QSL-V0, Male thread with external hex, R thread • Pneumatic connection, port 1 Male thread R1/8 • Pneumatic connection, port 2 For tubing outside diameter of 6 mm • Ambient temperature 0 °C - 60 °C • Nominal size 4.2 mm • Size Standard • Fire test material UL94 V-0 (housing), UL94 V-0 (releasing ring) • Type of seal on screwed plug Coating • Design L-shape • Size of pack 10 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 1 MPa • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating pressure complete temperature range -13.775 psi ... 145 psi
