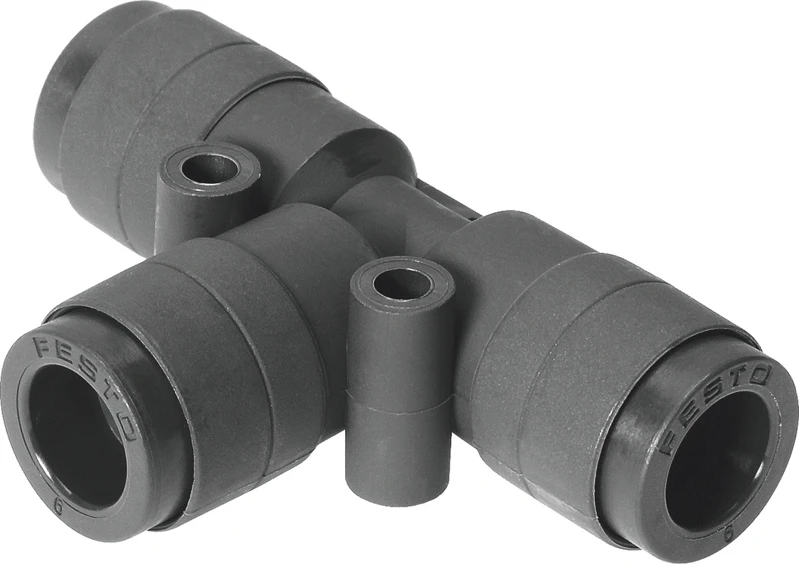

Push-in T-connector, QST-V0-10

Specifications • Push-in fittings QS-V0, resistant to welding spatter • Push-in T-connector QST-V0 • Pneumatic connection, port 1 For tubing outer diameter of 10 mm • Pneumatic connection, port 2 For tubing outside diameter of 10 mm • Ambient temperature 0 °C - 60 °C • Size Standard • Nominal size 8.1 mm • Fire test material UL94 V-0 (housing),UL94 V-0 (releasing ring) • Design T-shape • Size of pack 10 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 1 MPa • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating pressure complete temperature range -13.775 psi ... 145 psi
