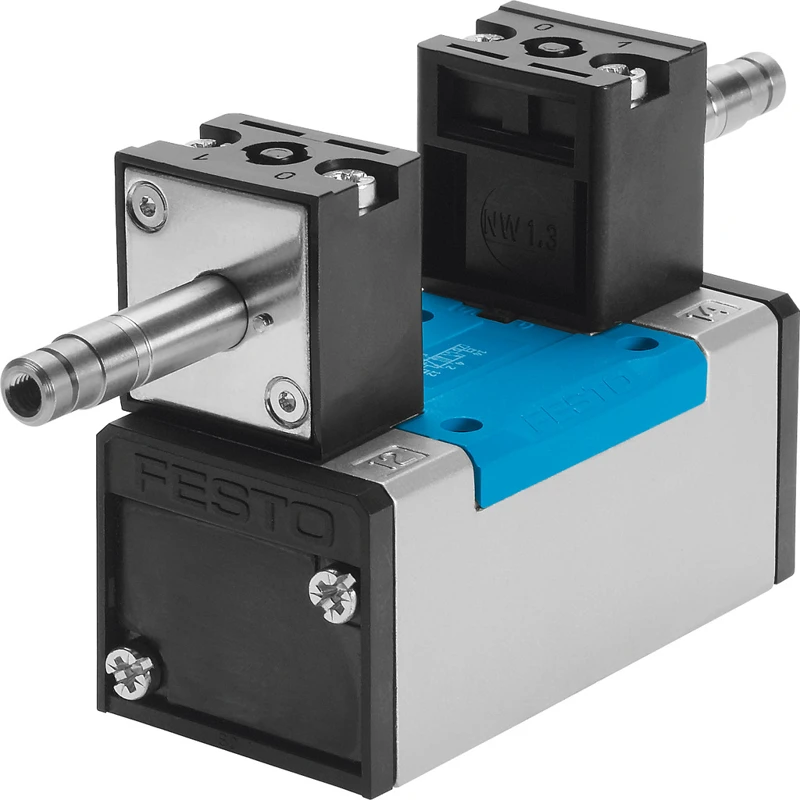

Solenoid valve, JMN1DH-5/2-D-3-S-C

Specifications • Standards-based valves to ISO 5599-1, solenoid coil MSN1 • Valve function 5/2-way, bistable, dominant • Type of actuation Electric • Construction width 65 mm • Standard nominal flow rate (standardised to DIN 1343) 4500 l/min • Pneumatic working port Sub-base size 3 to ISO 5599-1, G1/2 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure -0.09 MPa ... 1.6 MPa • Operating pressure -0.9 bar ... 16 bar • Design Piston gate valve
