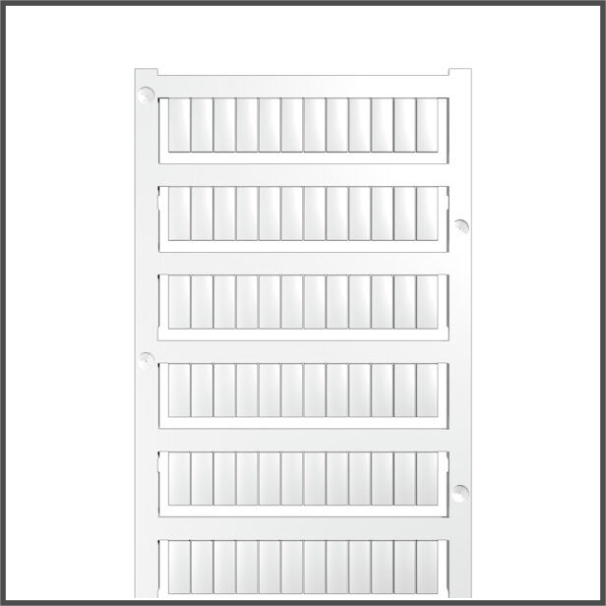

WS 12/5 MC NE WS:
WS markers are an ideal complement for W-series connections.
Because of their system compatibility, the WS tags can also be utilized with the I-series and Z-series.
The enormous marking surfaces support not only extended character strings but also multi-line text.
For labels with lengthy, personalized character strings, WS markers are perfect.
Printing with PrintJet CONNECT and/or Plotter is possible thanks to the tried-and-true MultiCard format.
Can be installed in strips or separately.
Markers in the well-established MultiCard format.
For bespoke printing, please email us a file of our labelling program, M-Print PRO or M-Print PRO Online (without installation), with your labelling parameters.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Height: 12 mm.
Height (inches): 0.472 inch.
Width: 5 mm.
Width (inches): 0.197 inch.
Net weight: 0.141 g.
Temperatures:
Operating temperature range: -40...100 °C.
Continuous operating temp., min.: -50 °C.
Environmental Product Compliance:
REACH SVHC: /.
RoHS Compliance Status: Compliant without exemption.
General data:
Application/manufacturer: Weidmueller, Allen-Bradley.
Colour: white.
compatible printer: PRINTJET CONNECT.
Halogen: No.
Material: Polyamide 66.
Material colour according to resistance code: 9.
Number of markers per combination: 1 MultiCard = Terminal marker.
Number of markers per packaging unit:
Form of supply: MultiCard.
Operating temperature range: -40...100 °C.
Operating temperature range, max.: 100 °C.
Operating temperature range, min.: -40 °C.
Printed characters: neutral.
UL 94 flammability rating: V-2.
Width: 5 mm.
Connector markers:
Pitch in mm (P): 5 mm.
