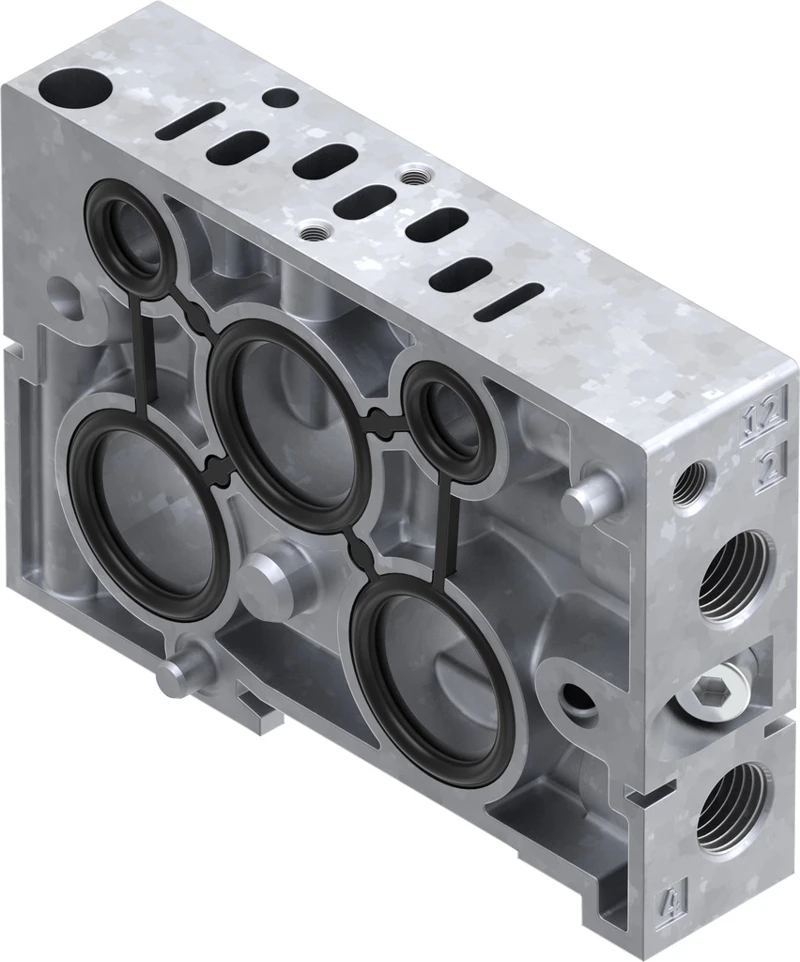

Manifold sub-base, NAW-1/8-02-VDMA-VL

Specifications • Manifold components, ISO 15407-1 • Construction width 18 mm • Based on standard ISO 15407-1 • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • LABS (PWIS) conformity VDMA24364-B1/B2-L • Product weight 130 g • Pilot air port 12 M5 • Pilot air port 14 M5 • Pneumatic connection, port 2 G1/8 • Pneumatic connection, port 4 G1/8 • Material sub-base Die-cast aluminium
