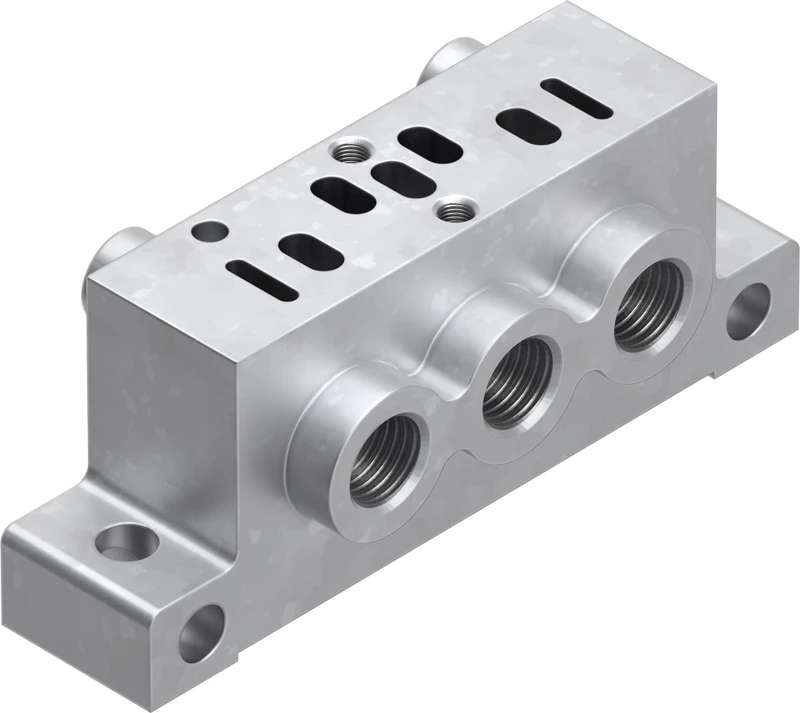

Solenoid valve, Accessories, NAS-1/8-02-VDMA
SKU: 161115
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valve VSVA, to ISO 15407-1
• Accessories, Individual sub-base
• Based on standard ISO 15407-1
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Product weight 67 g
• Type of mounting With through-hole
• Pilot air port 12/14 M5
• Pneumatic connection, port 1 G1/8
• Pneumatic connection, port 2 G1/8
• Pneumatic connection, port 3 G1/8
• Pneumatic connection, port 4 G1/8
• Pneumatic connection, port 5 G1/8
• Material sub-base Die-cast aluminium
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VSVA, to ISO 15407-1
• High-performance valves in a sturdy metal housing
• Width of standards-based valve 18/26 mm, flow rates up to 1400 l/min
• Manifold assembly with mixture of sizes possible
• Electrical connection via round or square plug socket
• Complete and standardised valve range
• Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc
