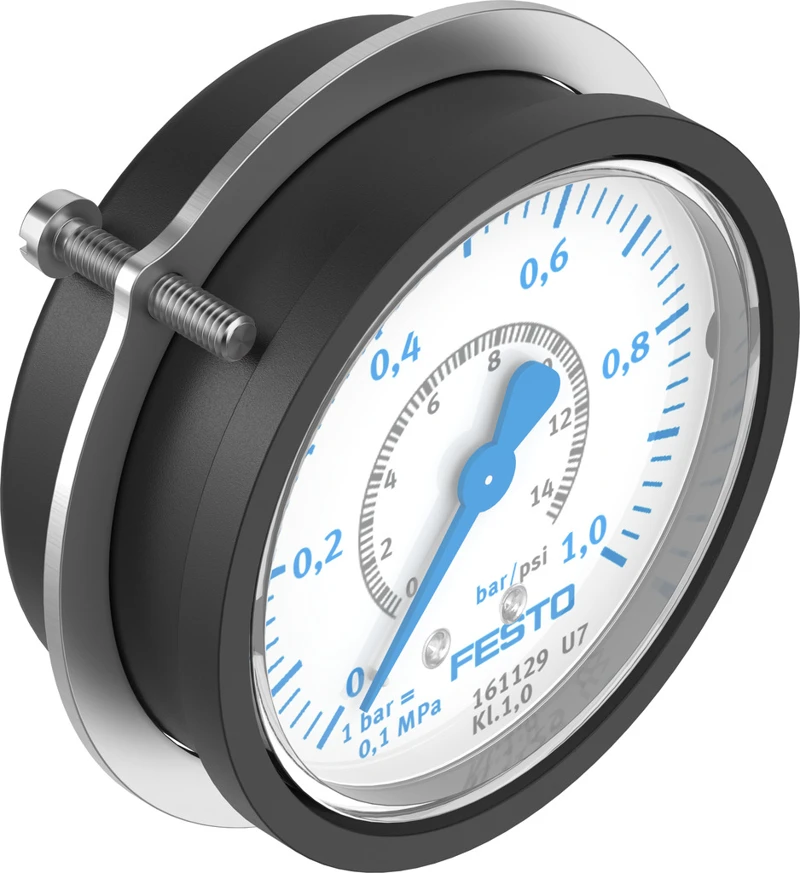

Flanged precision pressure gauge, FMAP-63-1-1/4-EN
SKU: 161129
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Flanged precision pressure gauge FMAP, MAP
• Type of mounting Front panel mounting
• Pneumatic connection G1/4
• Measurement accuracy class 1
• Indicating range 0 bar ... 1 bar
• Indicating range 0 psi ... 14.5 psi
• Symbol 00991463
• Conforms to standard EN 837-1
• Nominal size of pressure gauge 63
• Explosion protection The information in the certificate must be observed! Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
• Design Bourdon tube pressure gauge
• Operating medium Inert gases, Neutral fluids
Buy currently uses Select Automation shop pricing and checkout.
Flanged precision pressure gauge FMAP, MAP
• Precision pressure gauge to DIN EN 837-1 for front-panel or in-line installation with display range up to 16 bar or 230 psi.
• Designs based on EN 837-1
• Pneumatic connection via R or G thread
• Display units bar, psi
