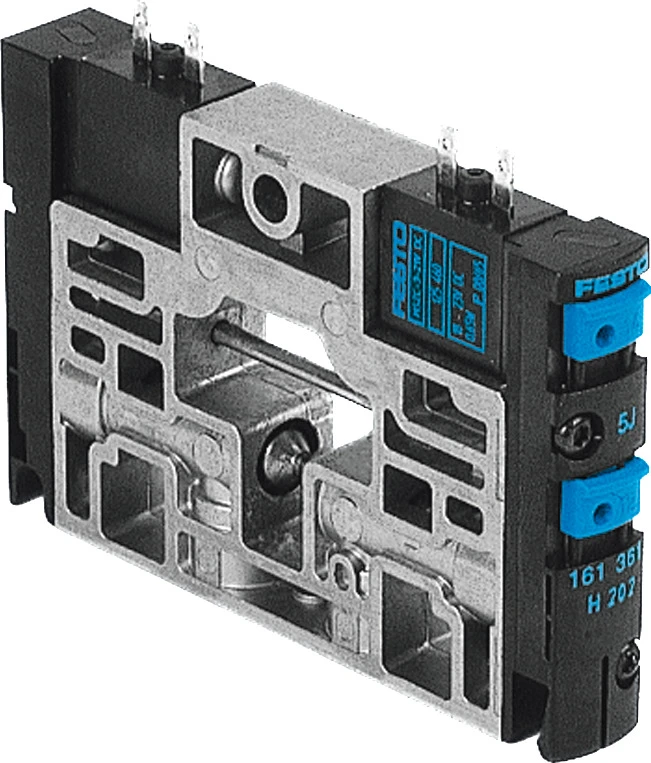

Solenoid valve, CPV14-M1H-2x3-GLS-1/8

Specifications • Valve terminal CPV, Compact Performance • Solenoid valve • Valve function 2x3/2-way, monostable, closed • Type of actuation Electric • Valve size 14 mm • Standard nominal flow rate (standardised to DIN 1343) 800 l/min • Pneumatic working port G1/8 • Operating voltage 24V DC • Operating pressure -0.09 MPa ... 1 MPa • Operating pressure -0.9 bar ... 10 bar • Design Piston gate valve • Type of reset Pneumatic spring • Degree of protection IP65
