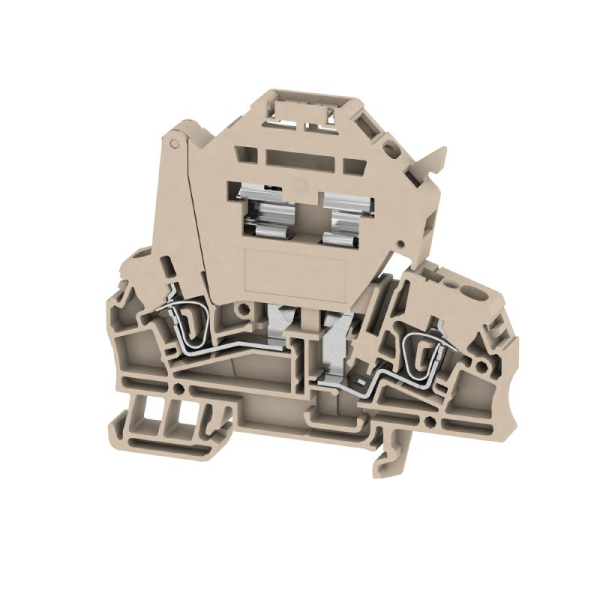

ZSI 2.5
SKU: 1616400000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
ZSI 2.5:
Using a separate fuse to safeguard the feed-through connection is beneficial in some situations.
One terminal block bottom piece makes up a fuse terminal block. using a carrier for fuse insertion.
Different fuses include pivoting screwable closures and flat plug-in fuses to fuse levers and pluggable fuse holders
Material data:
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 73 mm
Depth including DIN rail: 74 mm
Height: 79.5 mm
Width: 7.9 mm
Net weight: 19.54 g
Temperatures:
Storage temperature: -25 °C...55 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 120 °C
Rating data:
Rated cross-section: 2.5 mm²
Rated voltage: 500 V
Rated voltage to adjoining terminal: 500 V
Rated DC voltage: 500 V
Rated current: 6.3 A
Current at maximum wires: 6.3 A
Standards: IEC 60947-7-3
Volume resistance according to IEC 60947-7-x: 1.33 mΩ
Rated impulse withstand voltage: 6 kV
Power loss in accordance with IEC 60947-7-x: 0.77 W
Pollution severity: 3
