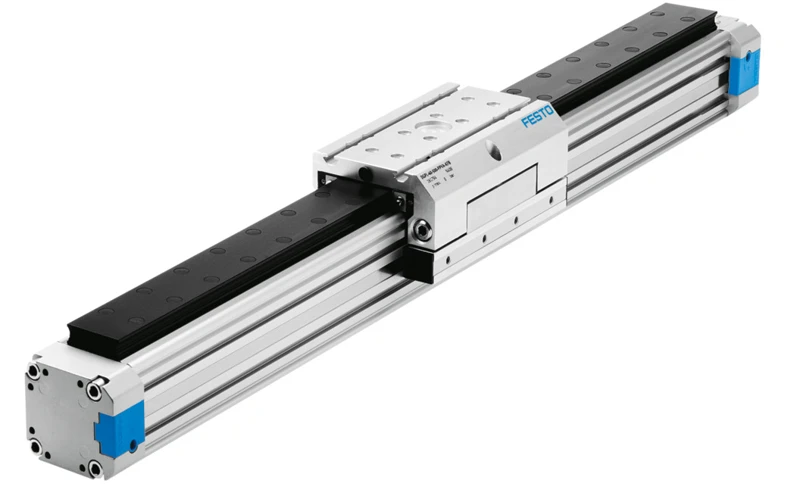

Linear drive, DGPL-50-...-PPV-A-KF-B
SKU: 161795
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Linear drives DGPL, with guide, Variable strokes for recirculating ball bearing guide KF
• Stroke 10 mm ... 3000 mm
• Piston diameter 50 mm
• Cushioning Pneumatic cushioning, adjustable at both ends, Shock absorber, hard characteristic curve
• Mounting position optional
• Guide Recirculating ball bearing guide
• Coupling design Positive-locking (slot)
• Position detection Via proximity switch
• Symbol 00991254
• Operating pressure 0.15 MPa ... 0.8 MPa
• Operating pressure 1.5 bar ... 8 bar
• Mode of operation Double-acting
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1178 N
Buy currently uses Select Automation shop pricing and checkout.
Linear drive, metric DGPL
• This positioning axis can be combined with the modular system for handling and assembly technology.
• Recirculating ball bearing guide or heavy-duty guide
• Precise and resilient
• Wide range of variants for customised applications
• The modern alternative is the linear drive DGC
