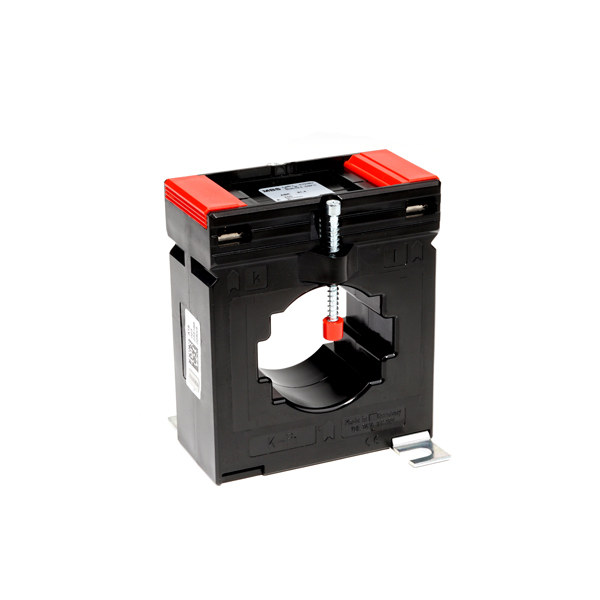

ASK 51.4 750/5A CURRENT TRANSFORMER CLASS 0.5

Current transformers ASK 51.4: Class of isolation: E Um < 0.72 kV is the maximum operational voltage. 50 Hz is the nominal frequency (others upon request). Ith = 60 x is the nominal thermal short-time current. MBS AG current transformers completely comply with the following in terms of the over-current limiting factor (FS 5) up to 1500 A nominal current. VBG 4 - IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1 5A secondary class 0.5 current transformers (class 0.2 available upon request)
