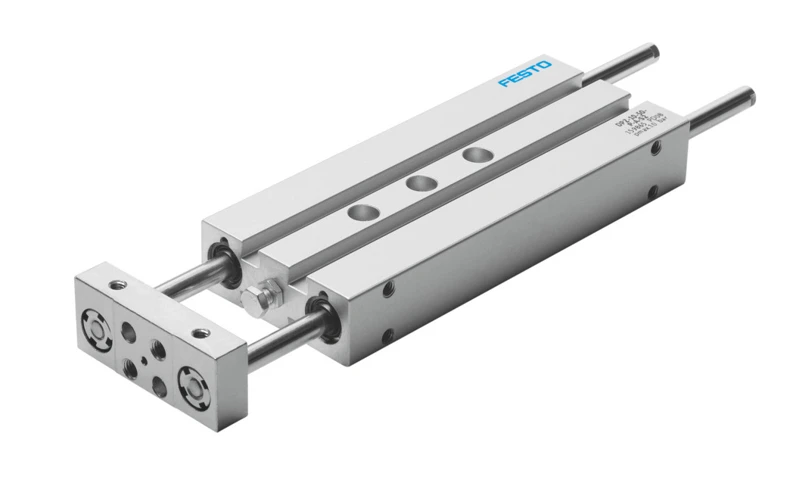

Twin cylinder, DPZ-32-100-P-A-KF-S2

Specifications • Twin cylinders Variant DPZ • Stroke 100 mm • Adjustable end-position range/length 10 mm • Piston diameter 32 mm • Operating mode, drive unit Yoke • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Guide Recirculating ball bearing guide • Design Guidance • Position detection Via proximity switch • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 724 N
