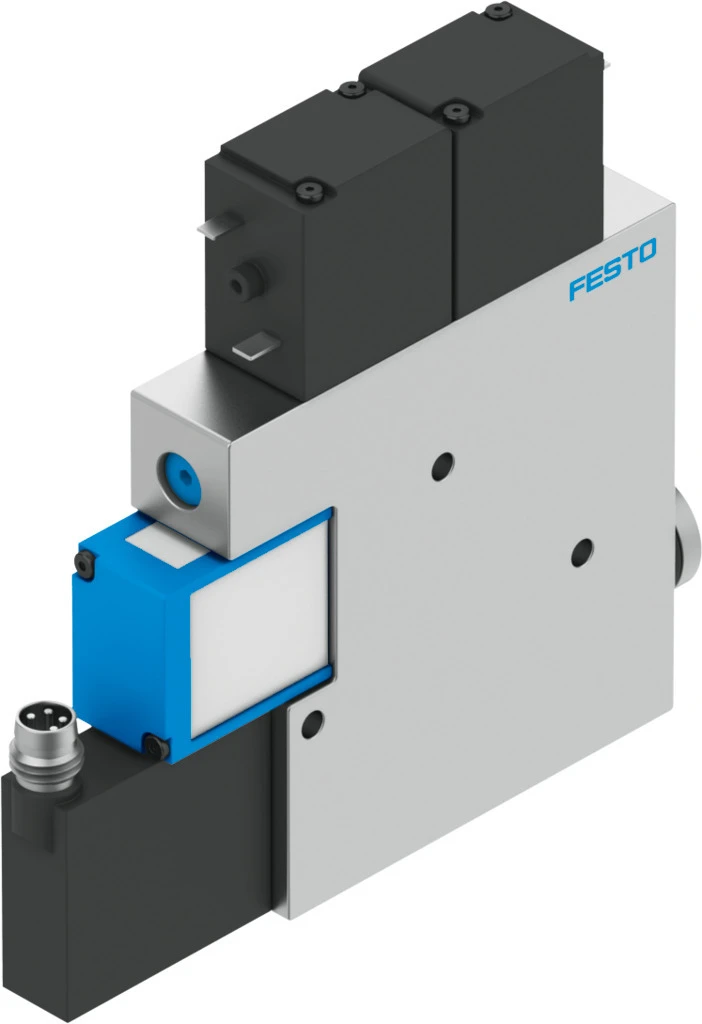

Vacuum generator, VADMI-70-P
SKU: 162526
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generators VADM/VADMI
• Nominal size, Laval nozzle 0.7 mm
• Grid dimension 15 mm
• Silencer design Closed
• Mounting position optional
• Ejector characteristic High vacuum
• Grade of filtration ≤40 µm
• Manual override Non-detenting
• Integrated function Electric ejector pulse valve, Flow control, Electric on-off valve, Filter, Check valve, Vacuum switch
• Measured variable Relative pressure
• Measuring principle Piezoresistive
• Switching element function N/O contact
• Max. vacuum 85 %
• Operating pressure 1.5 bar - 8 bar
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator VADM, VADMI
• Fast cycle times: with these robust vacuum suction nozzles, the compressed air supply is controlled via the integrated solenoid valve.
• Compact and sturdy design
• Built-in solenoid valve (on/off)
• Integrated filter with inspection window
• Available with air-saving function, vacuum sensor
• Optionally with adjustable ejector pulse
• Compact vacuum generation and monitoring in a single unit
