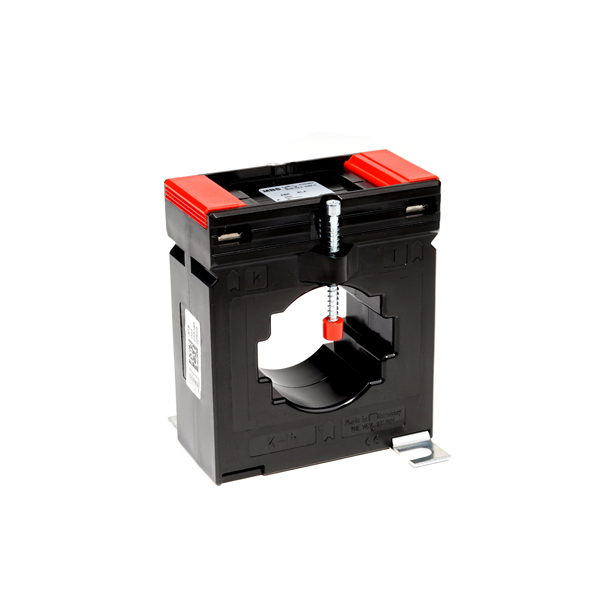

ASK 51.4 800/1A CURRENT TRANSFORMER CLASS 1
SKU: 16271
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications for general current transformers:
E is the isolation class.
Nominal frequency: 50Hz (others per request)
Maximum operating voltage: Um ≤ 0.72 kV
Thermal short-time current nominal: Ith = 60 x In
FS 5 is the over-current limiting factor up to 1500 A nominal current.
MBS AG current transformers completely abide by: IEC 61869/1+2 - DIN 42600 - VBG 4 - DIN VDE 0414/1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard current transformers (1A secondary - class 1)
ASK 51.4 current transformers
MODEL: ASK 51.4
RATIO: 800/1A
ROUND CONDUCTOR (⌀): 44 mm
PRIMARY BAR CONDUCTOR: 50 X 10 / 40 X 20 mm
DESCRIPTION: Standard current transformer
CLASS: 1
VA: 15
DIMENSIONS (MM): (H) 99 x (W) 86 x (D) 58
