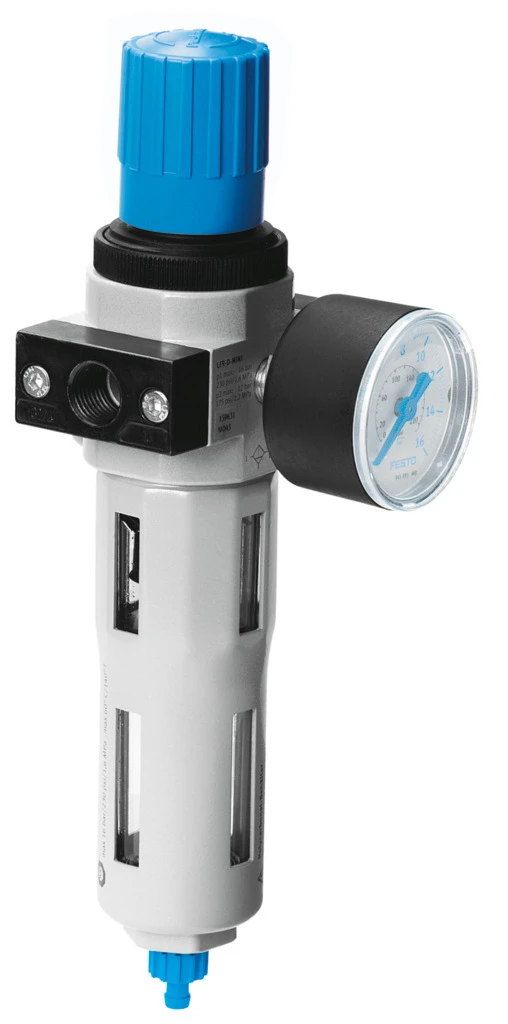

Filter regulator, LFR-3/8-D-5M-MIDI
SKU: 162721
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• End-position controllers SPC11
• Accessories, Filter regulator
• Size Midi
• Series D
• Actuator lock Rotary knob with detent
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm
• Condensate drain Manually rotating
• Design Filter regulator with pressure gauge
• Max. condensate volume 43 ml
• Bowl guard Metal bowl guard
• Pneumatic connection, port 1 G3/8
• Standard nominal flow rate (standardised to DIN 1343) 2400 l/min
• Pressure regulation range 0.5 bar - 12 bar
Buy currently uses Select Automation shop pricing and checkout.
Filter regulator LFR, LFRS
• Two pressure gauge connections for different installation options
• With manual, semi-automatic or fully automatic condensate drain
• Lockable rotary knob
• Size micro, mini, midi, maxi
