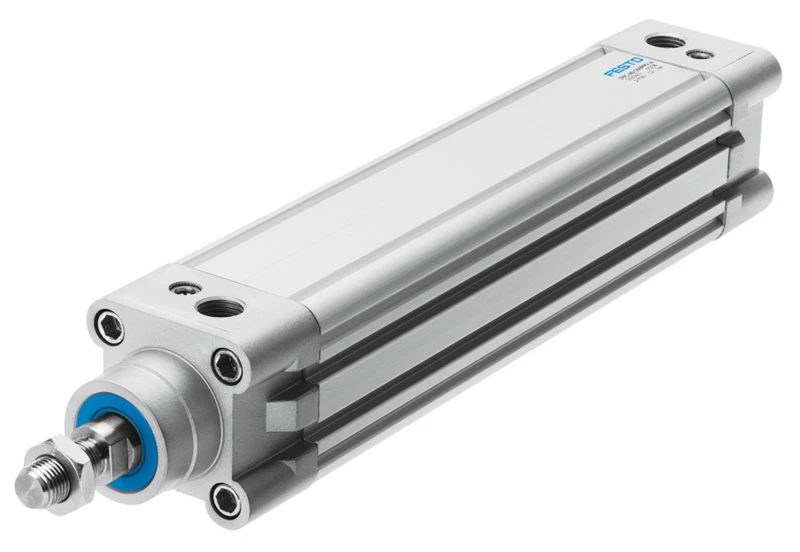

ISO cylinder, DNC-50-250-PPV-A

Specifications • Standards-based cylinders DNC, ISO 15552, With position sensing • Stroke 250 mm • Piston diameter 50 mm • Piston rod thread M16x1.5 • Cushioning Pneumatic cushioning, adjustable at both ends • Mounting position optional • Conforms to standard ISO 15552 • Piston-rod end Male thread • Design Piston, Piston rod, Profile barrel • Position detection Via proximity switch • Symbol 00991235 • Variants Piston rod at one end • Operating pressure 0.06 MPa ... 1.2 MPa • Operating pressure 0.6 bar ... 12 bar • Mode of operation Double-acting • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1178 N
