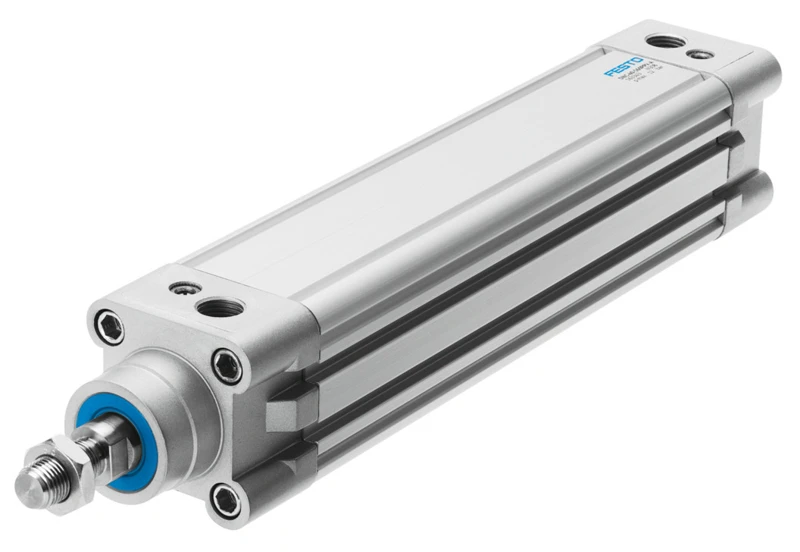

ISO cylinder, DNC-100- -

Specifications • Standards-based cylinders DNC, ISO 15552 • See datasheet for available configurations • Stroke 3 mm ... 2000 mm • Piston diameter 100 mm • Based on standard ISO 15552 • Cushioning Elastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends • Mounting position optional • Design Piston, Piston rod, Profile barrel • Position detection Via proximity switch, Without • Protection against torque/guide Square piston rod • Operating pressure 0.012 MPa ... 1.2 MPa • Operating pressure 0.12 bar ... 12 bar • Mode of operation Double-acting • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 4418 N ... 4712 N
