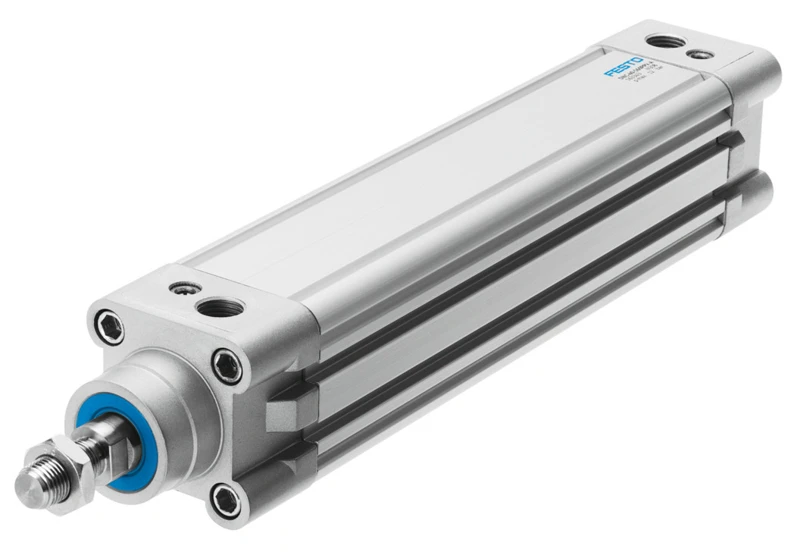

ISO cylinder, DNC-125- -
SKU: 163494
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DNC, ISO 15552
• See datasheet for available configurations
• Stroke 3 mm ... 2000 mm
• Piston diameter 125 mm
• Based on standard ISO 15552
• Cushioning Elastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends
• Mounting position optional
• Design Piston, Piston rod, Profile barrel
• Position detection Via proximity switch, Without
• Operating pressure 0.06 MPa ... 1 MPa
• Operating pressure 0.6 bar ... 10 bar
• Mode of operation Double-acting
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 6881 N ... 7363 N
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinder DNC
• Standards-based profile cylinder to ISO 15552 with fixed or adjustable cushioning.
• ISO 15552 (ISO 6431, VDMA 24562)
• Wide range of variants for customised applications
• Comprehensive range of mounting accessories for just about every type of installation
• For position sensing
