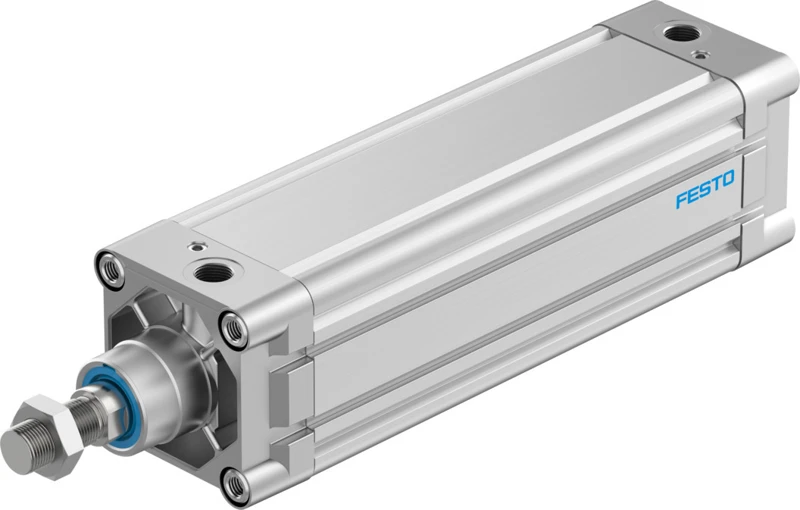

ISO cylinder, DNC-125-...-PPV

Specifications • Standards-based cylinders DNC, ISO 15552, Variable stroke, Without position sensing • Stroke 3 mm ... 2000 mm • Piston diameter 125 mm • Piston rod thread M27x2 • Cushioning Pneumatic cushioning, adjustable at both ends • Mounting position optional • Conforms to standard ISO 15552 • Piston-rod end Male thread • Design Piston, Piston rod, Profile barrel • Position detection Without • Symbol 00991232 • Variants Piston rod at one end • Operating pressure 0.06 MPa ... 1 MPa • Operating pressure 0.6 bar ... 10 bar • Mode of operation Double-acting • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 7363 N
