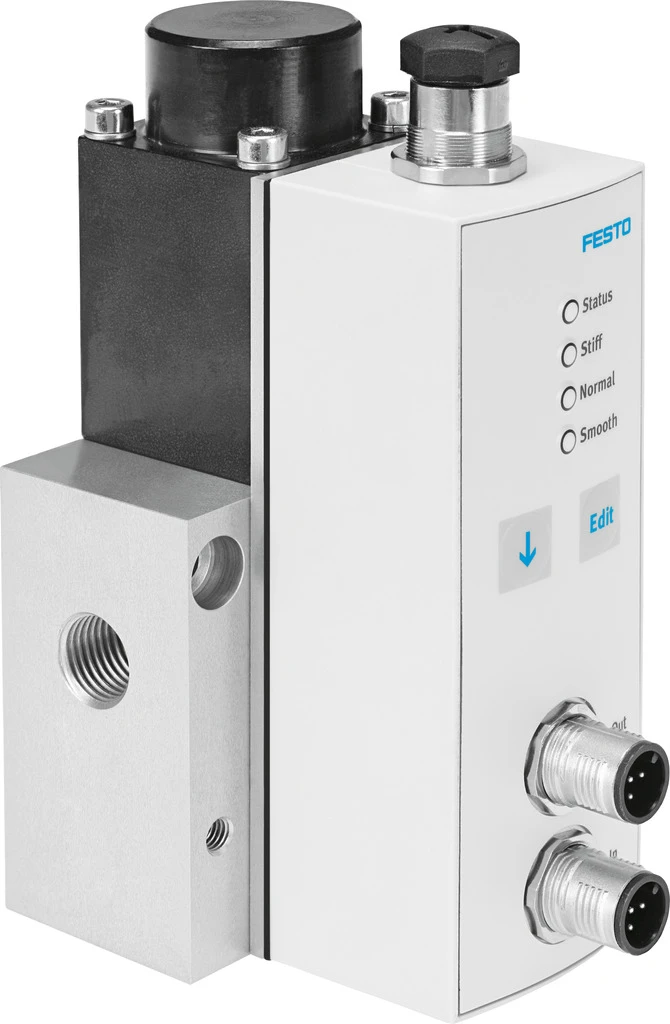

Proportional-pressure regulator, VPPL-3L-3-G14-0L20H-A4-A-S1-6
SKU: 1635992
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proportional pressure regulators VPPL, series L
• Valve function 3-way proportional-pressure regulator, closed
• Pneumatic connection, port 1 G1/4
• Pressure regulation range 0.2 bar - 20 bar
• Standard nominal flow rate (standardised to DIN 1343) 245 l/min
• Nominal size, supply 3 mm
• Nominal size, exhaust 3 mm
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional, Preferably vertical
• Design Directly actuated piston regulator
• Short circuit current rating no
• Max. cable length 30 m
Buy currently uses Select Automation shop pricing and checkout.
Proportional pressure regulator VPPL
• Specially developed for higher pressures from 10 … 40 bar.
• As an individual device with threaded connections, the valve can be used in a variety of applications, for example in stretch blow moulding of PET bottles in the food and beverage industry or on tyre or brake test benches in the automotive industry.
• For high-pressure applications
• Directly actuated piston regulator
• Available in three variants: flanged valve, flanged valve with external pilot air supply, in-line valve
