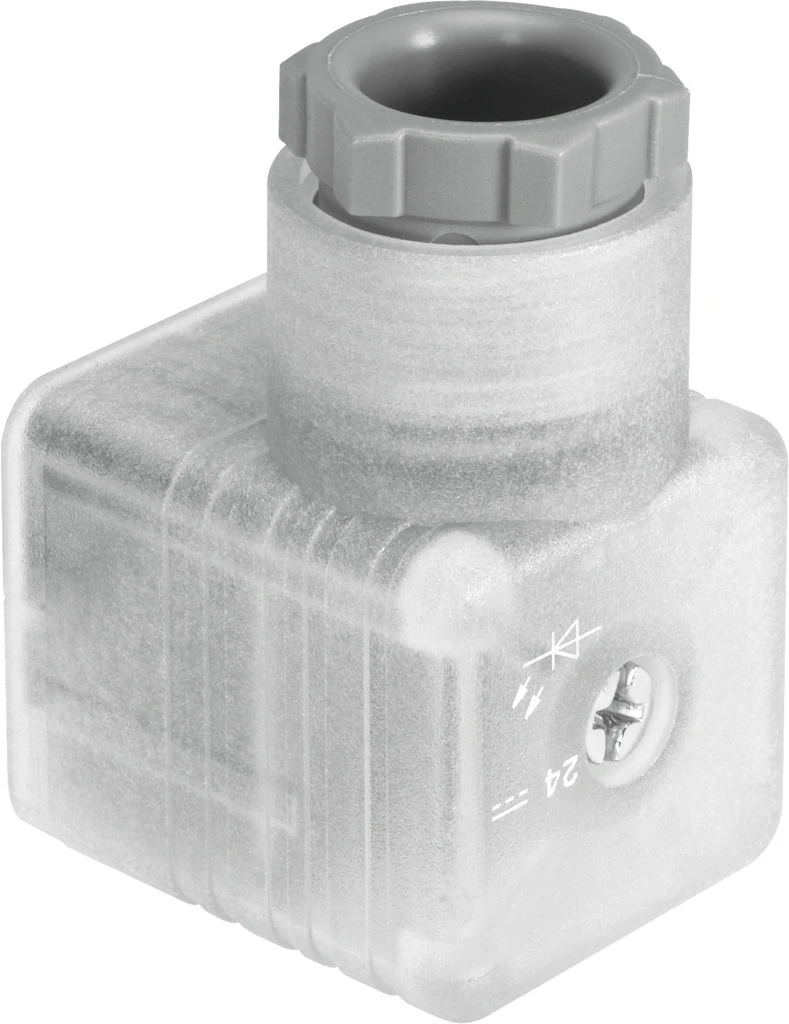

Angled plug socket, PEV-1/4-WD-LED-24

Specifications • Service unit combinations MSB4/MSB6, MS series • Accessories, Angled plug socket PEV • Conforms to standard EN 175301-803 • Switching status indication Yellow LED, Green LED • Type of mounting Screw-clamped • Cable outlet Angled • Electrical connection 1, function Field device side • Electrical connection 1, design Angular • Electrical connection 1, connection type Socket • Electrical connection 1, connector system Connection pattern type A based on EN 175301-803 • Electrical connection 2, function Controller side • Electrical connection 2, connector system Screw terminal • Electrical connection 2, number of connections/cores 5 • Electrical connection 2, used connections/cores 5 • Operational voltage range DC 15 V - 30 V • Degree of protection IP65
