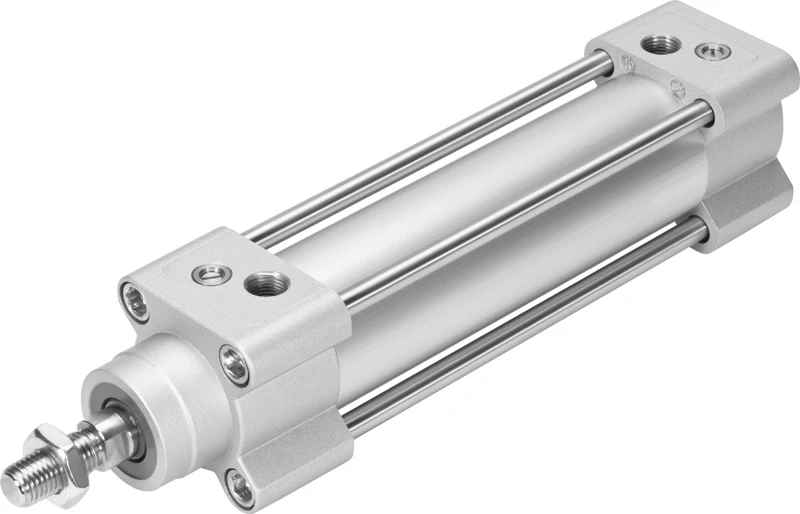

ISO cylinder, DSBG-...-40- -
SKU: 1645477
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBG, ISO 15552
• Stroke 1 mm ... 2800 mm
• Piston diameter 40 mm
• Piston rod thread M8, M12x1.25
• Torsional backlash at piston rod +/- -0.6 deg ... 0.6 deg
• Based on standard ISO 15552
• Cushioning Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends
• Mounting position optional
• Variants: For unlubricated operation, Bellows on bearing cap, Hard scraper, Extended male piston rod thread, Piston rod with female thread, Extended piston rod, Low friction for balancer applications, Metal scraper, With protection against rotation, Uniform, slow movement, Low friction, Through piston rod, Heat-resistant seals max. 120°C, Temperature range 0 to 150°C, Temperature range -40 to 80°C, Piston rod at one end
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinders DSBG, ISO 15552
• Standards-based cylinders to ISO 15552 (corresponds to the withdraw standards ISO 6431, DIN ISO 6431, VDMA24562, NFE49003.1 and UNI 10290)
• Sturdy tie rod design
• Double-acting
• For contactless position sensing
• Optionally with protection against rotation
• EX4: for use in potentially explosive areas
• Extensive range of accessories makes it possible to install the cylinder virtually anywhere
• Three types of cushioning available: Elastic cushioning: elastic cushioning rings/plates at both ends, PPS cushioning: pneumatic cushioning, self-adjusting at both ends, PPV cushioning: pneumatic cushioning, adjustable at both ends
