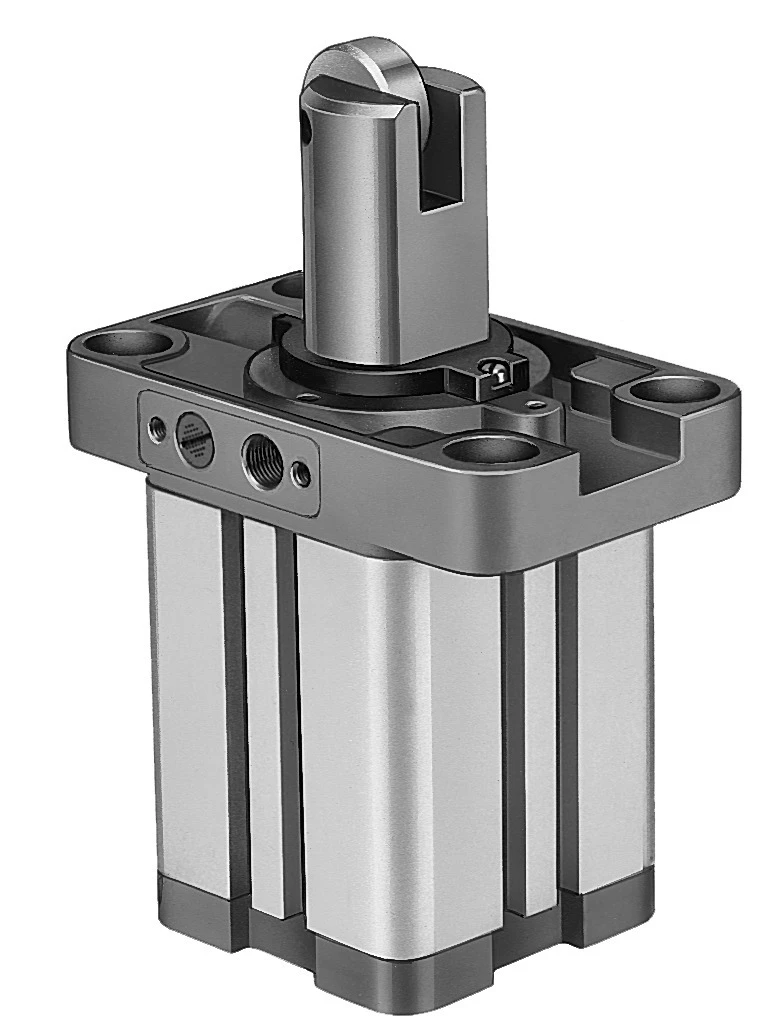

Stopper cylinder, STAF-80-40-P-A-R

Specifications • Stopper cylinder STAF • Stroke 40 mm • Piston diameter 80 mm • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Mode of operation Single-acting, Pulling • Design Piston, Piston rod with roller • Position detection Via proximity switch • Symbol 00991204 • Variants Piston rod at one end • Protection against torque/guide Flattened piston rod • Operating pressure 1 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Impact force 13300 N
