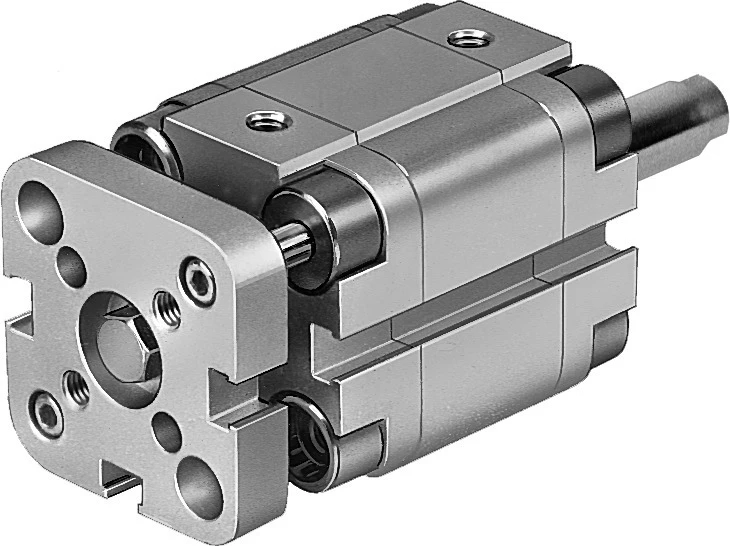

Compact cylinder, ADVUL-25-...-P-A-S2

Specifications • Compact cylinders ADVUL, Through piston rod, variable stroke • Stroke 1 mm ... 200 mm • Piston diameter 25 mm • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Design Piston, Piston rod • Position detection Via proximity switch • Symbol 00991735 • Variants Through piston rod • Protection against torque/guide Guide rod with yoke • Operating pressure 0.15 MPa ... 1 MPa • Operating pressure 1.5 bar ... 10 bar • Mode of operation Double-acting • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 247 N
