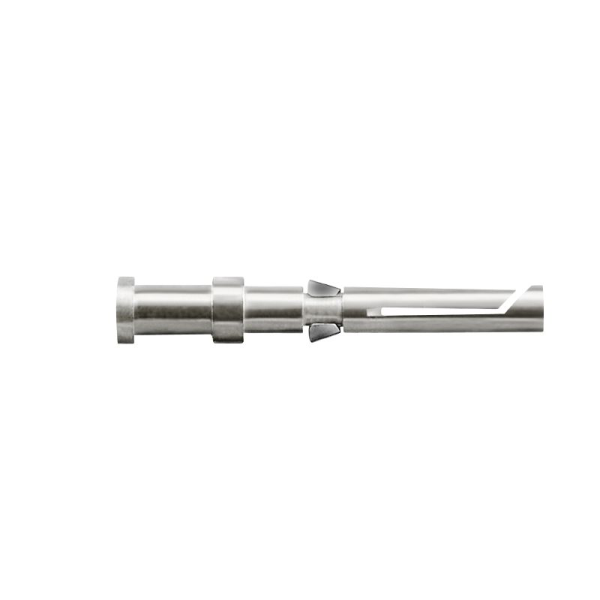

HDC-C-HD-BM1.5AG
SKU: 1651600000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC-C-HD-BM1.5AG:
Crimps make an electrical and mechanical connection between wire and contact that is both secure and reliable.
The ideal crimp connection is gas-tight and corrosion-resistant.
Dimensions and weights:
Diameter: 3.5 mm.
Net weight: 0.67 g.
Buy currently uses Select Automation shop pricing and checkout.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 6eabd5ae-2d6b-409e-8bdf-87c27ee10e40.
General data:
Conductor cross-section, max.: 1.5 mm².
Contact diameter, male Ø: 1.6 mm.
Contact material: Copper alloy.
Cross-section for connected wire: 1.5 mm².
Material: Copper alloy.
Plugging cycles: ≥ 500.
Production methods: turned.
Series: HD.
Stripping length, rated connection: 8 mm.
Surface finish: silver.
Type: Female.
Type of connection: Crimp connection.
Version insert: HD, HDD, HQ, MixMate.
Volume resistance: ≤4 mΩ.
