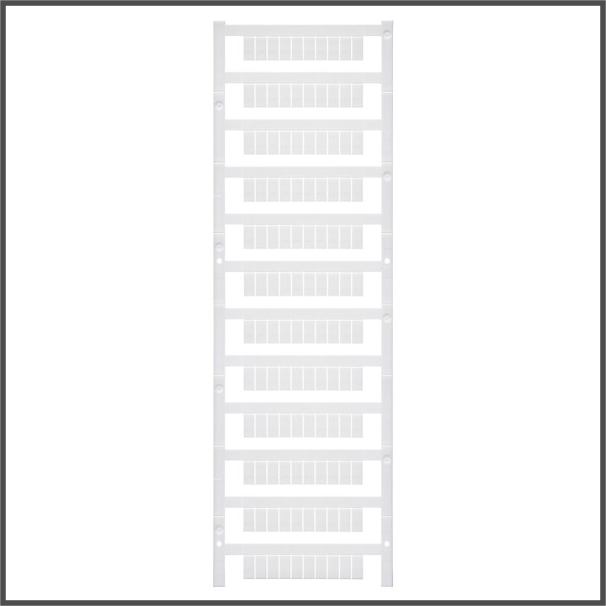

MF 10/5 MC NE WS
SKU: 1677160000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
MF 10/5 MC NE WS:
The Weidmüller marker system, known as MultiFit, is utilized by various terminal manufacturers.
Similar to the Weidmüller Dekafix, the MultiFit markers are ready for use with conventional printing.
We recommend running a test with sample markers on the terminals when using MultiFit for the first time.
One marker that works with several terminal makes.
Markers are ready to use and have standard printing.
With the PrintJet CONNECT or Plotter, blank markers can be printed.
Individual printed markers are sent in accordance with the customer's CAE data or specifications.
A single marking system for all purposes.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Height: 10 mm.
Height (inches): 0.394 inch.
Width: 5 mm.
Width (inches): 0.197 inch.
Net weight: 0.195 g.
Temperatures:
Operating temperature range: -40...100 °C.
Environmental Product Compliance:
REACH SVHC: /.
RoHS Compliance Status: Compliant without exemption.
General data:
Application/manufacturer: Phoenix, Wieland, Legrand, Telemecanique, Entrelec.
Colour: white.
compatible printer: PRINTJET CONNECT.
Halogen: No.
Material: Polyamide 66.
Material colour according to resistance code: 9.
Number of markers per combination: 1 MultiCard = Terminal marker.
Number of markers per packaging unit:
Form of supply: MultiCard.
Operating temperature range: -40...100 °C.
Operating temperature range, max.: 100 °C.
Operating temperature range, min.: -40 °C.
Printed characters: neutral.
Type of printing: neutral.
UL 94 flammability rating: V-2.
Width: 5 mm.
Connector markers:
Pitch in mm (P): 5 mm.
