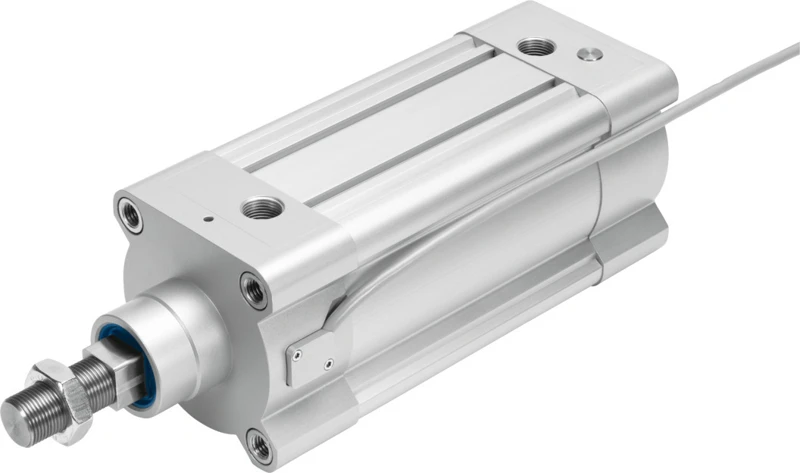

ISO cylinder, DDPC-...-80- -

Specifications • Standards-based cylinders DDPC, integrated displacement encoder • Stroke 10 mm ... 2000 mm • Stroke Servopneumatic positioning 50 mm ... 750 mm • Stroke Smart Softstop 50 mm ... 750 mm • Stroke reduction at end positions >= 15 mm • Smallest positioning stroke 3% of max. stroke, Max. 10 mm • Piston diameter 80 mm • Based on standard ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) • Cushioning Elastic cushioning rings/plates at both ends • Positioning installation position optional • Soft Stop installation position Optional • Functional principle of measuring system Digital • Design Piston, Piston rod, Profile barrel • Position detection Via proximity switch, With integrated displacement encoder
