HDC-C-M3-BM6.0AG
SKU: 1682290000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

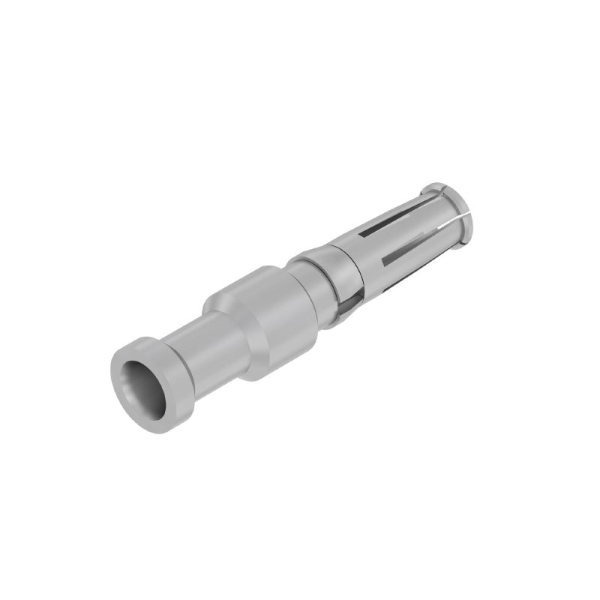

HDC-C-M3-BM6.0AG:
Crimps make an electrical and mechanical connection between wire and contact that is both secure and reliable.
The ideal crimp connection is gas-tight and corrosion-resistant.
Dimensions and weights:
Diameter: 6.1 mm.
Net weight: 3.05 g.
Buy currently uses Select Automation shop pricing and checkout.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 6eabd5ae-2d6b-409e-8bdf-87c27ee10e40.
General data:
Conductor cross-section, max.: 6 mm².
Contact diameter, male Ø: 3.6 mm.
Contact material: Copper alloy.
Cross-section for connected wire: 6 mm².
Material: Copper alloy.
Production methods: turned.
Stripping length, rated connection: 10 mm.
Surface finish: silver.
Type: Female.
Type of connection: Crimp connection.
Version insert: CM 3.
Volume resistance: ≤1 mΩ.
