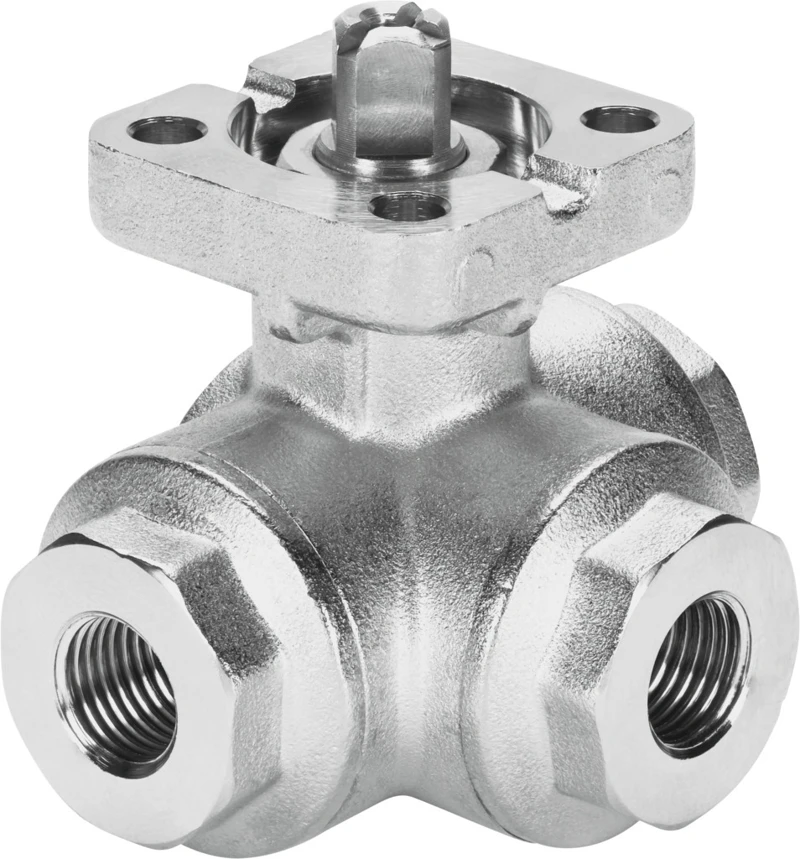

Ball valve, VZBA-1/2"-GGG-63-32L-F0304-V4V4T
SKU: 1692212
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valves VZBA, 3-way
• Design 3-way ball valve, L-hole
• Type of actuation Mechanical
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Connection Process valve Rp1/2
• Switching position indicator Slot direction = flow direction
• Flange hole pattern F03, F04
• Inside diameter 12.7 mm
• Nominal size DN 15
• Valve function 3/2
• Manual override None
• Flow direction Reversible
Buy currently uses Select Automation shop pricing and checkout.
Ball valve VZBA
• The automatable 3-way ball valve VZBA is made from stainless steel for trouble-free control of aggressive media or gases in piping systems.
• Automatable 2-way or 3-way ball valve
• Stainless steel design
• Blow-out proof shaft
• Manual operation possible using hand lever
• Connecting thread to EN 10226-1
• Mounting flange to ISO 5211
• Use in zone 1, 21, 2, 22
