SKMU PG21-K GR
SKU: 1698220000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
SKMU PG21-K GR:

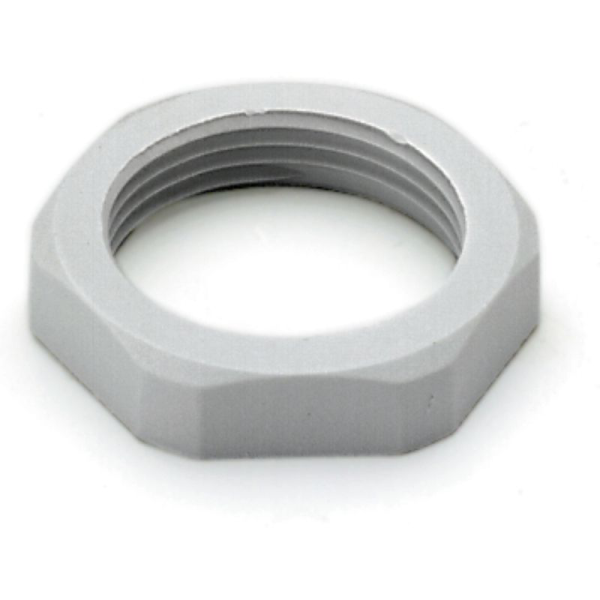

SKMU PA (plastic locknut), Locknut, PG 21, 7 mm, Polyamide 6 (PA6 - GF30).
In addition to cable glands for a variety of applications, the product line includes plugs, pressure compensation components, adaptors, and associated accessories such as locknuts, sealing rings, flat washers, and earthing rings.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Height: 7 mm.
Height (inches): 0.276 inch.
Net weight: 4.1 g.
Temperatures:
Operating temperature: -40 °C - 100 °C.
Environmental Product Compliance:
REACH SVHC: /.
General information:
AF size 1: 36 mm.
Cable glands: PG 21.
External thread: PG 21.
Halogen: No.
Internal thread: PG 21.
Length of thread: 7 mm.
Material: Polyamide 6 (PA6 - GF30).
O.D.: 41.58 mm.
Operating temperature range, max.: 100 °C.
Operating temperature range, min.: -40 °C.
Pitch of thread: 1.59 mm.
Silicone: No.
Thickness: 7 mm.
UL 94 flammability rating: HB.
