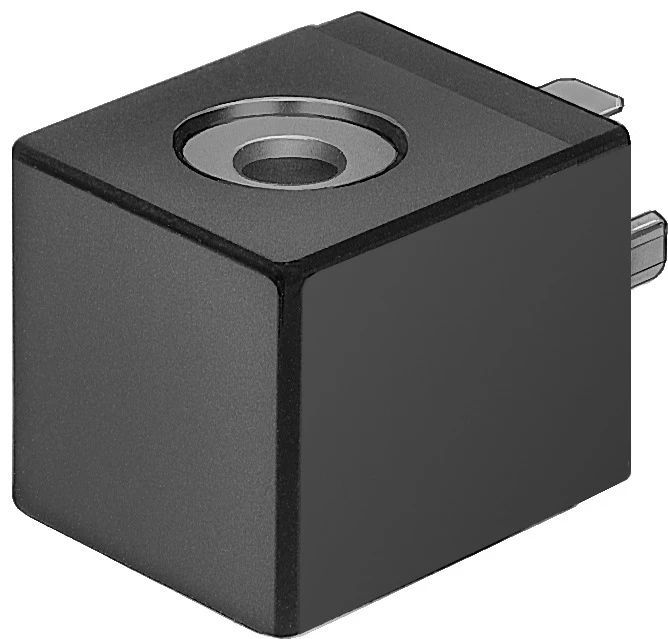

Solenoid coil, MSN1W-24AC/12DC
SKU: 170152
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based valves to ISO 5599-1
• Accessories, Solenoid coil
• Mounting position optional
• Min. pick-up time 10 ms
• Duty cycle 100%
• Power factor (cos phi) 0.7
• Characteristic coil data 12 V DC: 5.0 W, 24 V AC: 50 Hz, pick-up power 7.5 VA, holding power 5.0 VA, 24 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA
• Permissible voltage fluctuations At 50 Hz ± 10%, With 60 Hz -10...+20%
• LABS (PWIS) conformity VDMA24364-C1-L
• Media temperature -10 °C ... 50 °C
• Degree of protection IP65
• Ambient temperature -10 °C ... 50 °C
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Standards-based valves to ISO 5599-1
• Accessories, Solenoid coil
• Mounting position optional
• Min. pick-up time 10 ms
• Duty cycle 100%
• Power factor (cos phi) 0.7
• Characteristic coil data 12 V DC: 5.0 W, 24 V AC: 50 Hz, pick-up power 7.5 VA, holding power 5.0 VA, 24 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA
• Permissible voltage fluctuations At 50 Hz ± 10%, With 60 Hz -10...+20%
• LABS (PWIS) conformity VDMA24364-C1-L
• Media temperature -10 °C ... 50 °C
• Degree of protection IP65
• Ambient temperature -10 °C ... 50 °C
