Connecting cable, KMPYE-AIF-1-GS-GD-0,3
SKU: 170239
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• End-position controllers SPC11
• Accessories, Connecting cable KMPYE, Cable length 0.3 m
• Conforms to standard EN 61076-2-101
• Additional functions Product-specific pin allocation
• Cable designation With accessories
• Frequency of connection 500
• Electrical connection 1, function Field device side
• Electrical connection 1, design Round
• Electrical connection 1, connection type Socket
• Electrical connection 1, cable outlet Straight
• Electrical connection 2, function Controller side
• Electrical connection 2, design Round
• Electrical connection 2, connection type Plugs
• Electrical connection 2, cable outlet Straight
Buy currently uses Select Automation shop pricing and checkout.

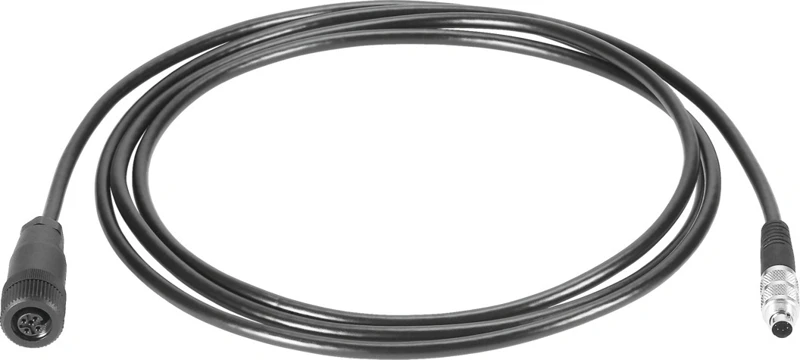

Connecting cable KMPYE
• For solenoid coils with thread M12x1 A-coded according to EN 61076-2-101
• For connecting proportional directional control valves MPYE with end-position controller SPC11
• Cable length 0.3 ... 5 m
• With PVC or PUR cable
• Ambient temperature -25 ... +80 °C
