FLH 250 230V AC
SKU: 17025010007
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

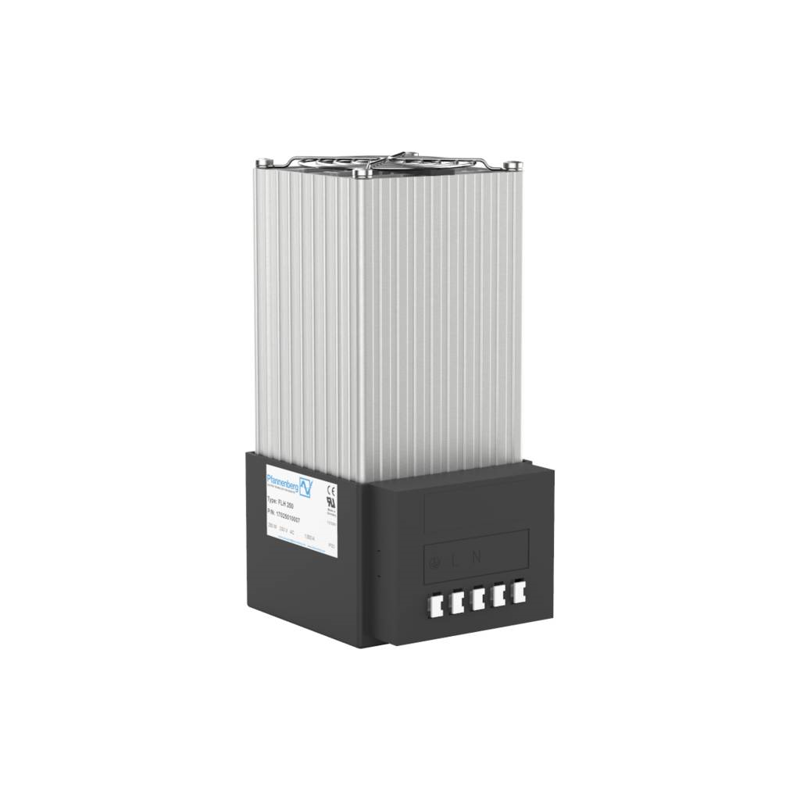

Fan heater FLH 250:
FLH series fan heaters are excellent for use in larger electrical cabinets.
It includes an inbuilt fan that aids natural convection, ensuring that heat is distributed quickly and evenly throughout the electrical cabinet.
Fan heaters are typically used in conjunction with a thermostat or hygrostat to prevent low temperatures or high humidity in the electrical cabinet, preventing condensation and thereby preventing corrosion or electrical short circuits.
Advantages of the series at a glance:
Available in 250W and 400W heating capacities.
It is suitable for temperatures ranging from -40C to 70C.
Heat distribution: The fan and high heat output ensure that heat is distributed quickly and evenly.
Prolonged lifespan and sturdy design featuring an inbuilt fan to facilitate natural convection.
Mounting: 35mm-DIN-rail integrated snap fastening.
plug terminal connector for electrical connection.
Versions are available in a slim-line design (SL) for limited space.
Approvals: EAC, cURus.
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Rated voltage V ±10 %: AC 230.
Rated frequency Hz ±1 %: AC Hz / 60 Hz.
Heating performance W: 250 W.
Max. surface temperature °C: 70 °C.
With fan: yes.
With thermostat: no.
Operating temperature °C: -40 °C - +70 °C.
System of protection for intended purpose of use: IP IP20.
Housing material: aluminium profile, brightly anodised.
Type of mounting: snap fastening for 35 mm profile bars according to EN 60715.
Type of connection: plug terminal connector.
Weight (without packaging) kg: 1,04 kg.
Dimensions (H x W x D) mm: 106 mm x 93 mm x 187 mm.
Width mm: 93 mm.
Height mm: 106 mm.
Depth mm: 187 mm.
ETIM-Class: EC000737.
