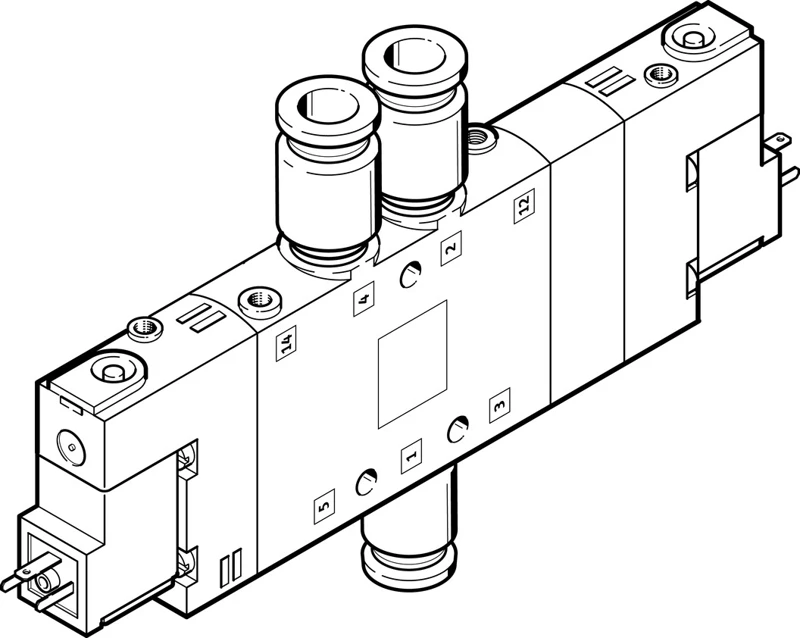

Solenoid valve, CPE18-M2H-5/3G-QS-10
SKU: 170295
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves CPE18
• Valve function 5/3 closed
• Type of actuation Electric
• Construction width 18 mm
• Standard nominal flow rate (standardised to DIN 1343) 1050 l/min
• Pneumatic working port QS-10
• Operating voltage 110V AC
• Operating pressure 0.25 MPa ... 1 MPa
• Operating pressure 2.5 bar ... 10 bar
• Design Piston gate valve
• Type of reset Mechanical spring
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve CPE
• Minimum width, low electrical power consumption and maximum flow control values: the solenoid valve CPE.
• Universal individual valve
• High flow rate relative to its size
