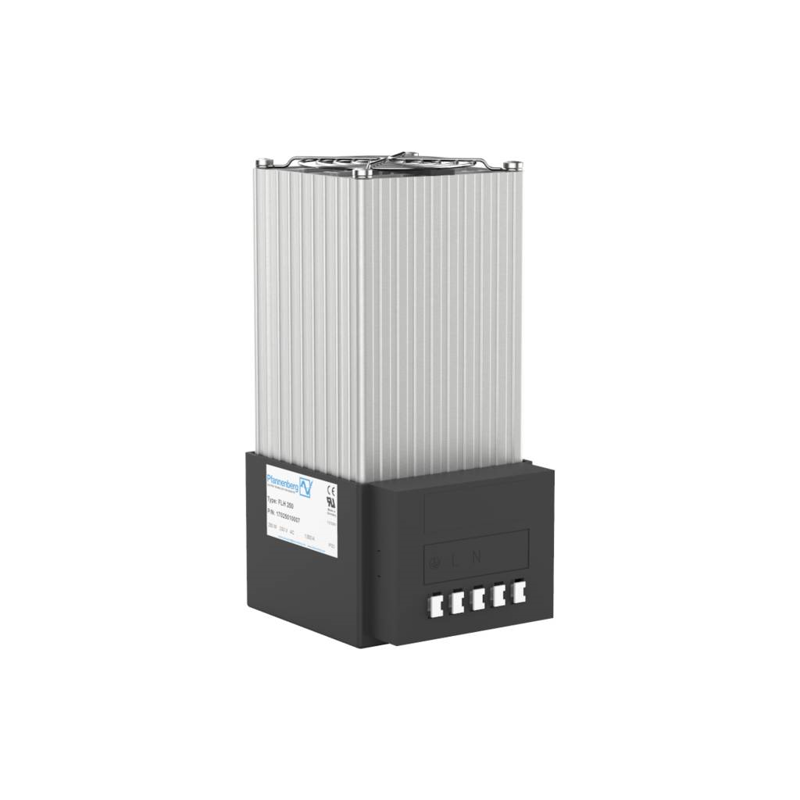

FLH 400 230V AC
SKU: 17040010007
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The FLH fan heater series is available in two versions, with heating performance ratings of 250 and 400 watts.
This sort of heating is suited for use in large electrical enclosures.
It includes an integrated fan to aid natural convection, allowing for fast and even heat distribution in the control cabinet.
Buy currently uses Select Automation shop pricing and checkout.
Technical data:
Heating performance (Ta = +20 °C): 400 W.
Degrees of protection for intended purpose of use: IP 20.
Operating temperature: –40 … +70 °C / –40 … +158 °F.
Storage temperature: –40 … +70 °C / –40 … +158 °F.
Type of mounting: snap fastening for 35 mm profile bars according to EN 60715.
Rated voltage1 ±10 %: AC 50 | 60 Hz, 230V.
Functional range: 207–258 V AC 50 | 60 Hz.
Max. starting current: 1.8A.
Max. surface temperature: 85°C.
Operating temperature: –40 … +70°C.
System of protection for intended purpose of use: IP 20.
Device construction: aluminum profile, brightly anodized.
Type of connection: plug terminal connector.
