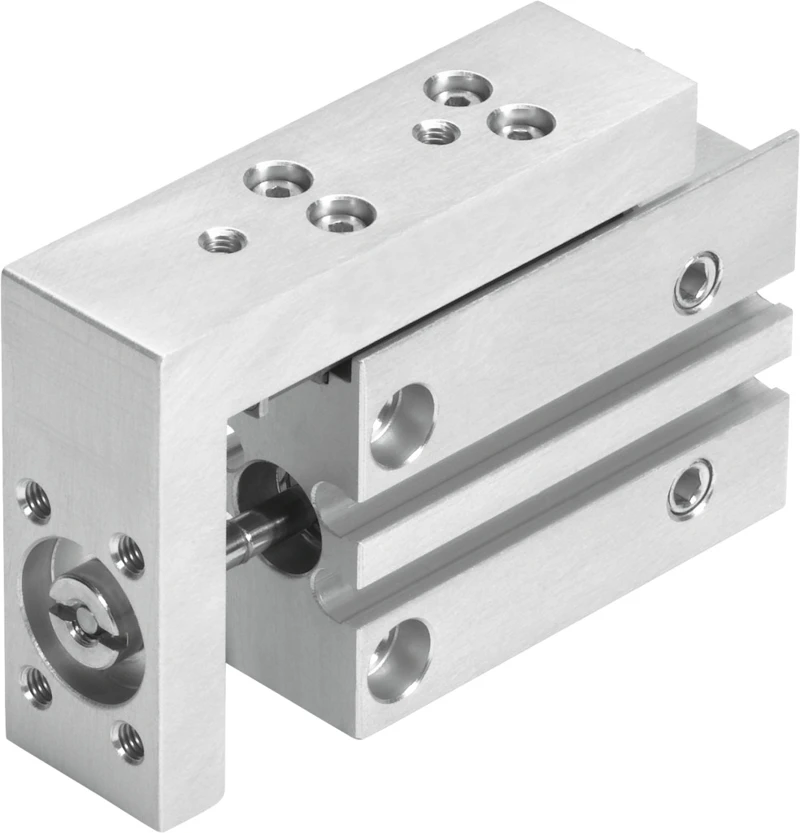

Mini slide, SLS-6-30-P-A

Specifications • Mini slides SLS • Stroke 30 mm • Piston diameter 6 mm • Operating mode, drive unit Yoke • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Guide Ball bearing cage guide • Design Yoke, Piston, Piston rod, Ball roller guide, Slide • Position detection Via proximity switch • Symbol 00991737 • Operating pressure 0.15 MPa ... 1 MPa • Operating pressure 1.5 bar ... 10 bar • Operating pressure 21.75 psi ... 145 psi • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 17 N
