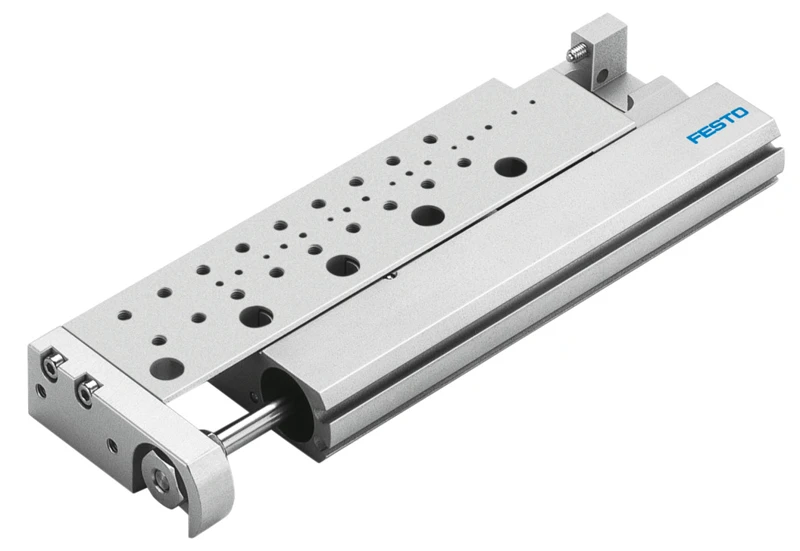

Mini slide, SLF-16-30-P-A

Specifications • Mini slides SLF • Stroke 30 mm • Adjustable end-position range/length 5 mm • Piston diameter 16 mm • Operating mode, drive unit Yoke • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Guide Ball bearing cage guide • Design Yoke, Piston, Piston rod, Ball roller guide, Slide • Position detection Via proximity switch • Symbol 00991737 • Operating pressure 0.1 MPa ... 1 MPa • Operating pressure 1 bar ... 10 bar • Operating pressure 14.5 psi ... 145 psi • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 121 N
