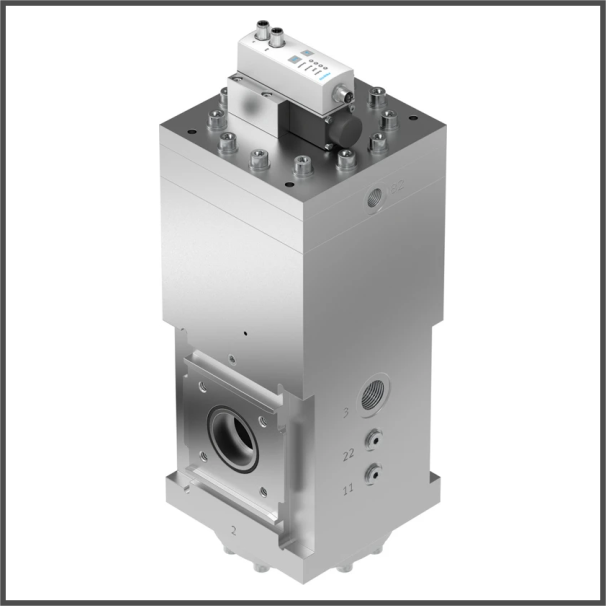

Electrical pressure regulator, PREL-186-HP3-A4-A-40CFX-1
SKU: 1709213
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Electric pressure regulators PREL, series L
• Pneumatic connection, port 1 G1
• Size 186
• Nominal size DN 45
• Series L
• Mounting position Vertical
• Type of actuation Electric
• Design Electrically adjustable pressure regulator
• Controller function Output pressure constant, Via primary pressure compensation, With secondary venting
• Symbol 00995417
• Operating pressure 0 MPa ... 5 MPa
• Operating pressure 0 bar ... 50 bar
• Pressure regulation range 0.4 bar ... 40 bar
• Max. pressure hysteresis 0.806 bar
Buy currently uses Select Automation shop pricing and checkout.
Electric pressure regulator PREL
• The on-flange version with and without external control air supply of the proportional-pressure regulator VPPL is coupled directly with flow booster PREL. This ensures higher flow.
• Electrical pressure regulator PREL is operated with proportional-pressure regulator VPPL.
• For high-pressure applications
• Food grade see www.festo.com/certificates/PREL
• Size 90 mm, 186 mm
