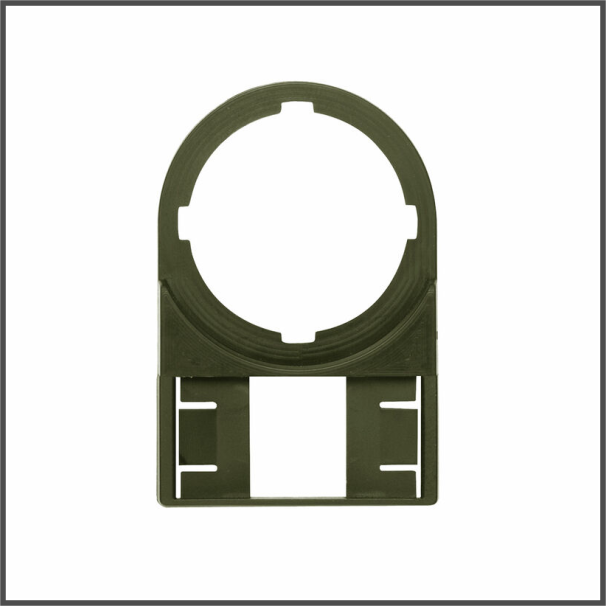

SM-H 27/12.5 SW
SKU: 1716640000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Specifications:
Version: Switch Mark, Accessories.
Quantity: 25.
Depth: 3.3 mm.
Height: 42 mm.
Width: 27 mm.
Operating temperature range: -40...100 °C.
Colour: black.
No Halogen.
Material: Polyamide 66.
Material colour according to resistance code: 0.
Number of markers per combination: 1 multi-Card = Accessories.
UL 94 flammability rating: V-2.
Diameter: 22 mm.
Buy currently uses Select Automation shop pricing and checkout.
SM is a MultiCard marker for labelling control and signalling devices. The tags are clipped into the carriers or attached by means of the adhesive film already fitted to them. Customised tags can be created with the PrintJet CONNECT or Plotter marking systems.
•Users can quickly produce tags to suit their needs
•No need to stock expensive standard tags •Highly resistant printing quality when using the PrintJet as a substitute for engraving
•For extreme demands, we recommend the ETO SM protective film
•Holders can be used for the 22-mm or 30-mm-diameter push-buttons from Siemens, ABB, Moeller and Télémécanique
For custom printing: Please send us a file of our labeling software M-Print PRO or M-Print PRO Online (without installation) for your labeling specifications.
