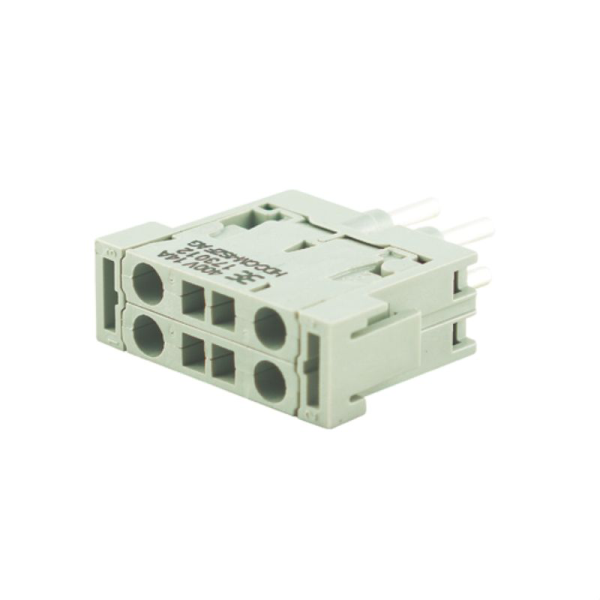

HDC-CM-4SZF AG
SKU: 1730120000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC-CM-4SZF AG:
The CM4 module uses an established tension clamp connection.
The contact point can be opened using a screwdriver.
After inserting the wire, shut the contact chamber by removing the screwdriver.
A secure connection can be established fast and without the use of any special tools.
A removal tool is available to remove the modules.
Buy currently uses Select Automation shop pricing and checkout.
Specification dimensions and weights:
Height: 25.4 mm.
Height (inches): 1 inch.
Width: 11.4 mm.
Width (inches): 0.449 inch.
Length: 34 mm.
Length (inches): 1.339 inch.
Net weight: 15 g.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3.
SCIP: b67daa31-7dca-434d-8290-da7fb52f83a2, ConCept Pneumatic module.
Colour: beige.
UL 94 flammability rating: V-0.
Dimensions:
Height of plug: 25.4 mm.
Total length base: 34 mm.
Width: 11.4 mm.
General data:
Colour: beige.
Insulation strength: 1012 Ω.
Low smoke acc. DIN EN 45545-2: Yes.
Material: Polycarbonate, glass fibre reinforced.
Number of poles: 4.
Plugging cycles: ≥ 500.
Pollution severity: 3.
Rated current (DIN EN 61984): 14 A.
Rated impulse voltage (DIN EN 61984): 6 kV.
Rated voltage (DIN EN 61984): 400 V.
Series: ConCept module.
Surge voltage category: III.
Type: Pin.
Type of connection: Tension-clamp connection.
UL 94 flammability rating: V-0.
Volume resistance: 1.5 mΩ.
Connection data PE:
Connection type PE: Screw connection via module frame.
Version:
Conductor cross-section, max.: 2.5 mm².
Conductor cross-section, min.: 0.5 mm².
Material: Polycarbonate, glass fibre reinforced.
Stripping length, rated connection: 10 mm.
Type of connection: Tension-clamp connection.
Volume resistance: 1.5 mΩ.
Wire connection cross section AWG, max.: AWG 14.
Wire connection cross section AWG, min.: AWG 20.
