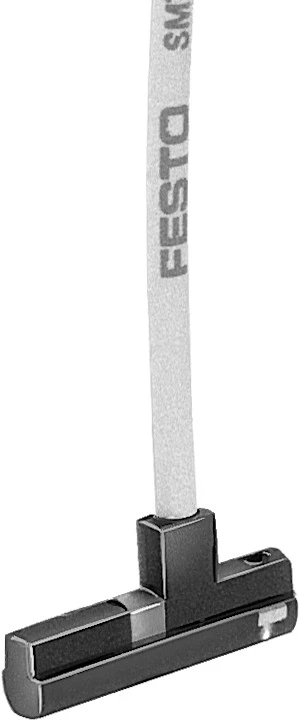

Proximity sensor, SME-10-KQ-LED-24
SKU: 173211
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proximity sensors SME-10, for C-slot
• Operational voltage range DC 12 V - 27 V
• Switching element function N/O contact
• Switching output Contacting, bipolar
• Lateral connection direction
• Design For C-slot
• Conforms to standard EN 60947-5-2
• Approval RCM trademark
• Electrical connection 1, connection type Cable
• Electrical connection 1, connector system Open end
• Electrical connection 1, number of connections/cores 3
• Connection outlet orientation Lateral
• Cable length 2.5 m
Buy currently uses Select Automation shop pricing and checkout.
Proximity switch SME-10
• Magnetic reed cylinder switch for round slot, can be inserted lengthways.
• Measuring principle: magnetic reed
• Insertable in the slot lengthwise
• LED switching status indication
• Cable length 0.3, 2.5 m
